Product Details:
| Brand | D.p.engineers 9871014210 |
| Usage | Industrial Use, Residential Use, Office Use |

Product Details:
| Brand | D.p.engineers 9871014210 |
| Usage | Industrial Use, Residential Use, Office Use |

Features:
Environment friendly
Dirt resistance
Fine finish
Specifications:

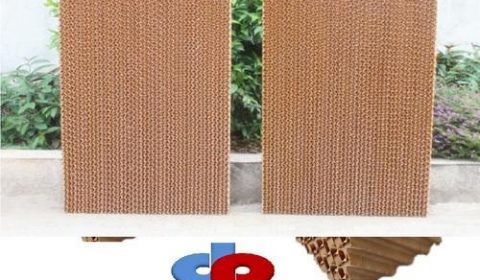

Type: Air Washer cooling pad,Ahu Cooling Pad
Usage: Air Washer cooling pad,Ahu Cooling Pad
Material: paper
Additional Information:

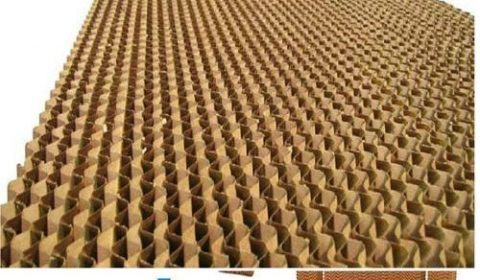

Agriculture Cooling Pad
Made of Cellulose Corrugated Paper has high intensity structure with insoluble chemical compounds, corrosion resistant, long service life. Specific stereoscopic structure, it will provide largest evaporation surface area for heat exchange between water & air (approx 460 m2/m3) which provide excellent cooling effect.scientifically designed flute angle (45/45) directs water towards both the air inlet and outlet side; the water then intrinsically flushes away dirt algae and mineral build up on the evaporation surfaces.
Specifications:
Type: Agriculture Cooling Pad
Thickness Available : 100mm, 150mm
Outer frame: made of co-extruded aluminium alloy/ lmm thick hot dip galvanized

Product Details:
| Usage | Industrial Use, Residential Use, Office Use |

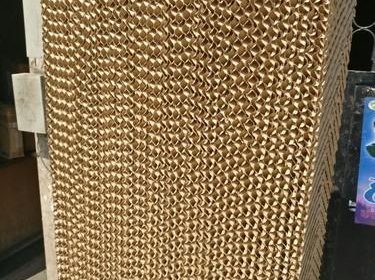

7090 cellulose Cooling pad
The Cellulose Pad is cross corrugated coated with anti rot, rigidifying & wetting resins. The 150 VAPUR+ Pad are made for maximum efficiency, at minimum pressure drop.The pad media is treated with anti-rot and rigidifying resins. The media is cross-corrugated to maximize the mixing of air and water. Saturation efficiency ranging from 50 to 98% can be achieved depending upon air velocity and depth of the cooling pad.
Air flows horizontally, while the re-circulating water flows vertically, through the pad. The water is collected at bottom of the pad and is re-circulated, again by a pump through the unique gutter system made of G. I. Sheet.
Availability:-

Product Details:
| Brand | d.p.engineers |
| Color | brown |
| Usage | Industrial Use, Residential Use, Office Use |

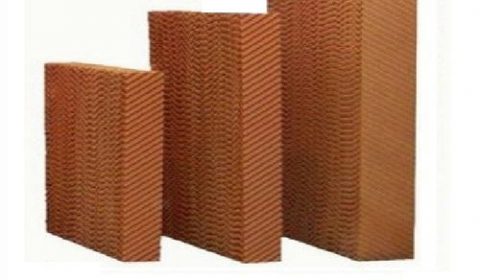

Honey Comb Pad
With the valuable assistance of a skilled team of professionals, we are offering an extensive range of high quality Honey Comb Pad. This honey comb pad is manufactured by new generation high polymer material and the spatial crossing linking technology. The offered honey comb pad do not include causing the skin sensibility chemical substances and so on phenol, installs when the use to human body non-toxic harmless, green, security, energy conservation, environmental protection, economy. Our offered honey comb pad can be availed at pocket friendly price by our renowned clients within given time frame.
Specifications:
• Type: Air-Cooled
• Cooling Water: Industrial Water
• System Type: Combined

Product Details:
| Usage | Industrial Use, Residential Use, Office Use |

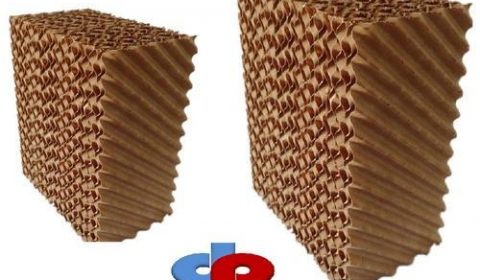

Air Washer Paper Fills
Which is made of fluted cellulose sheet those are glued together. Cellulose sheet is treated with unique ingredients to achieve high cooling efficiency and degradation resistance.
As hot air passes through the Evaporative Cooling Pad, a stream of cool and refreshing air is produced.
DP Model 5090 & 7090 evaporative cooling pads are developed to provide exceptional wetting properties and airflow to achieve optimum cooling capacity and maximum durability. Our cooling pads pads are your best choice!
Models & Parameter
H (mm)
1200, 1500, 1800, 2000
As per requirement
W (mm)
900, 800
As per requirement
D (mm)
100, 150, 200, 300
50 – 150
h (mm)
7
5
ñ
45
45
ò
45
45
H: Pad Height
W: Pad Width
h: Flute Height
D: Pad Depth
ñ: Flute Angle
ò: Flute Angle
Features
Excellent wetting properties
Strong and self supporting
No water carry-over
ECO friendly
High evaporation & cooling efficiency
Long life span
Self cleaning
Easy to install
Low Pressure drop
Dirt resistant
Low operation cost
Application
Greenhouses & Horticulture industry
Vegetable storage
Mushroom farming
Seed farming
Seed farming
Floriculture
Poultry and Livestock industry
Poultry farms
Livestock
Hatcheries
Dairy farms
Industrial and comfort cooling
Cooling fan
Precoolers
Industrial humidification
Residential cooling.
