  • Intrinsically Safe Differential Pressure Transmitter

    Intrinsically Safe Differential Pressure Transmitter

    Intrinsically Safe Differential Pressure Transmitter

    Model 204/C204

    Setra’s Model 204 pressure transducers are intended for accurate pressure measurements of gas or liquid media compatible with 17-4 PH stainless steel. The high level output signal and excellent stability, combined with fast dynamic response, make this unit ideal for industrial, laboratory and aerospace applications. The exceptional accuracy is achieved by combining Setra’s unique electronic circuitry with its patented variable capacitance sensor. This unit is compensated for both zero and sensitivity shifts due to environmental.

  • Kimo Make Differential Pressure Transmitter

    Kimo Make Differential Pressure Transmitter

    Product Details:

    ABS housing IP 65
    configuration Software or DIP

    Kimo Make Differential Pressure Transmitter

    Product Description:
    Measuring ranges
    CP 111 : from -100 to +100 Pa with EV
    CP 112 : from -1000 to +1000 Pa
    CP 113 : from -10 000 to +10 000 Pa
    CP 114 : from -500 to +500 mbar
    CP 115 : from -2000 to +2000 mbar
    Technical data
    ABS housing – IP 65
    With or without 10-digits LCD display
    0-10 V or 4-20 mA output
    Housing with simplified mounting system
    Software or DIP switch configuration
    Quick and easy mounting with the 1/4 turn system with wall-mount plate

  • Kimo Differential Pressure Transmitter- CP 113

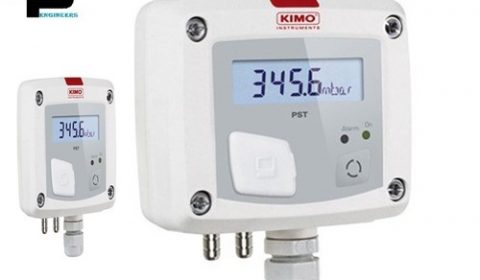

    Kimo Differential Pressure Transmitter- CP 113

    Product Details:

    Brand Kimo
    Display Type LCD

    Kimo Differential Pressure Transmitter- CP 113

    Product Description:
    Product Specification:-
    Accuracy Range Percent : ±1.5% of reading ±3 mmH2O
    Brand Name : Kimo
    Display Text : 10 digits
    Display Type : LCD
    Includes : KIAL-100A : Power supply class 2, 230 Vac input, 24 Vac output, KIAL-100C : Power supply class 2, 230 Vac input, 24 Vdc output, LCC-S : configuration software with USB cable, Connection tube, Connection fittings, Through-connections
    Item Weight G : 143
    Material Type : ABS V0 as per UL94
    Model Text : CP 113
    Power Consumption Va : 2 or 0.6
    Product Information : Height of digits : Value : 10 mm ; Unit : 5 mm
    Cable gland : for cables Ø 8 mm maximum
    Conditions of use (°C/%RH/m) From 0 to +50 degreeC. In non-condensing condition. From 0 to 2000 m
    Output / Supply: active sensor 0-10 V or 4-20 mA (alim. 24 Vac/Vdc ± 10%), 3-4 wires, passive loop 4-20 mA (power supply 16/30 Vdc), 2 wires, common mode voltage <30 VAC, maximum load : 500 Ohms (4-20 mA) / minimum load : 1 K Ohms (0-10 V)
    Please always use the device in accordance with its intended use and within parameters described in the technical features in order not to compromise the protection ensured by the device.
    Protection : IP65
    Resolution : 1 Pa ; 0.1 mmH2O ; 0.01 mbar ; 0.01 inWG ; 0.01 mmHG ; 0.1 daPa ; 0.001 kPa
    Standards : European directives: 2004/108/EC EMC ; 2006/95/EC Low Voltage ; 2011/65/EU RoHS II ; 2012/19/EU WEEE
    Storage Temperature Celsius : -10 to +70
