Category: DWYER INSTRUMENTS Pressure Switch Wholesale India

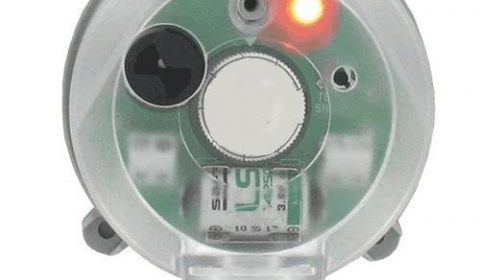

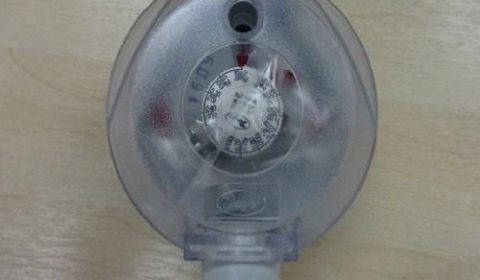

  • Dwyer BDPA-07-2-N Adjustable Differential Pressure Switch

    Dwyer BDPA-07-2-N Adjustable Differential Pressure Switch

    Product Details:

    Brand Honeywell, Baumer
    Media Type Gas, Liquid

    Dwyer BDPA-07-2-N Adjustable Differential Pressure Switch
    PRODUCT DESCRIPTION
    Dwyer Instruments BDPA-07-2-N, Adjustable differential pressure alarm, range 4.00-2000 w.c., M20 connection.
    Adjustable differential pressure alarm, range 4.00-2000 w.c., M20 connection.
    24 Volt or Battery Powered, Built-in Audible and Visual Alarm
    Item Specifications
    Service: Air and noncombustible, compatible gases.
    Wetted Materials: Diaphragm: Silicone; Housing: Switch Body: PA 6.6 and POM; Cover: Polystyrene.
    Temperature Limits: 32 to 122°F (0 to 50°C).
    pressure Limits: 40 w.c. (10 kPa).
    Electrical Rating: 1.0 A @ 30 VDC/VAC/span>
    Switch Type: SPDT.
    Alarm Indicationrm.: Red LED and audible alarm.
    Alarm Level: Approximately 90db at 4 (10 cm).
    Alarm Acknowledge: Button preSS.
    Power Requirements: 16 to 30 VDC, 18 to 30 VACor 3.6 V LS14250 lithium metal battery, installed functional, user replaceable. Battery acts as back-up if power is lost.
    Battery Life: Approximately 1.5 years with 3.6 V/1.2 Ah.
    Repeatability: _15% FS.
    Electrical Connections: Screw terminals. M20x1.5 with cable strain relief or optional 1/2 NPT connection.
    process Connections: 5/16 (7.94 mm) outside diameter tubing, 1/4 (6.0 mm) inside diameter tubing.
    Mounting Orientation: Vertically, with pressure connections pointing downwards.
    Weight: 6.1 oz (173 g).
    Enclosure Rating: IP21.
    Agency Approvals: CE, RoHS.
    FIND SIMILAR PRODUCTS BY CATEGORY
    Dwyer Instruments
    Pressure
    Differential Pressure
    Switches

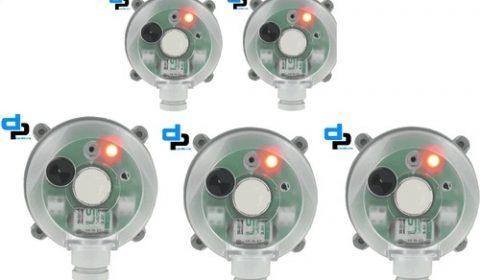

  • Dwyer BDPA-06-2-N Adjustable Differential Pressure Switch

    Dwyer BDPA-06-2-N Adjustable Differential Pressure Switch

    Product Details:

    Brand Honeywell, Baumer
    Media Type Gas, Liquid

    Dwyer BDPA-06-2-N Adjustable Differential Pressure Switch
    Description
    Series BDPA Adjustable Differential Pressure Alarm 2.00-10.00″ w.c.

    24 Volt or Battery Powered, Built-in Audible and Visual Alarm

    The Series BDPA Adjustable Differential Pressure Alarm with built-in audible and visual set point indication is designed for overpressure, vacuum, and differential pressure applications. The scaled adjustment knob allows changes to the switching pressure to be made without a pressure gage. The silicone diaphragm and PA 6.6 body make the Series BDPA perfect for use with air and other noncombustible gases.

    The Series BDPA Adjustable Differential Pressure Alarms offer a versatile range of configurations allowing utilization of their many features. The BDPA can be powered by battery or 24 VDC/VAC line power. If connecting line power, the battery can act as back-up power in case of power outage. When set point threshold is reached, a local loud audible buzzer and bright LED will indicate periodically notifying of set point activation. An SPDT contact may also be wired to send a signal remotely to a DDC or building management system. A snooze button located through an opening in the cover can be pressed by the user to manually disengage the audible and visual indication until a maintenance operation is performed. If the instrument is mounted where it is difficult to access, a remote contact may be connected allowing the user to deactivate the buzzer and LED at the remote contact location.

    The Series BDPA Differential Pressure Alarm’s great functional versatility makes it perfect for filter, fan, and ventilation applications or any retrofit job where installing electrical wiring proves cost-prohibitive.

    Note: For a 1/2″ npt connection, use the 1/2″ conduit fitting adapter (A-483).

    Approvals

    CE Approval
    Reduction of Hazardous Substance (RoHS)
    Specification
    Service Air and noncombustible, compatible gases
    Wetted Materials Diaphragm: Silicone; Housing: Switch Body: PA 6.6 and POM; Cover: Polystyrene
    Temperature Limits 32 to 122°F (0 to 50°C)
    Pressure Limits 40″ w.c. (10 kPa)
    Electrical Rating 1.0 A @ 30 VDC/VAC
    Switch Type SPDT
    Alarm Indicationrm. Red LED and audible alarm
    Alarm Level Approximately 90 db at 4″ (10 cm)
    Alarm Acknowledge Button press
    Power Requirements 16 to 30 VDC, 18 to 30 VAC or 3.6 V LS14250 lithium metal battery, installed functional, user replaceable. Battery acts as back-up if power is lost
    Battery Life Approximately 1.5 years with 3.6 V/1.2 Ah
    Repeatability ±15% FS
    Electrical Connections Screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection
    Process Connections 5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing
    Mounting Orientation Vertically, with pressure connections pointing downwards
    Enclosure Rating IP21
    Weight 6.1 oz (173 g)
    Agency Approvals CE, RoHS

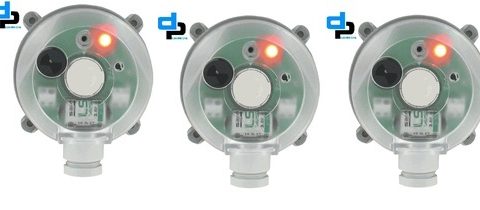

  • Dwyer BDPA-05-2-N Adjustable Differential Pressure Switch

    Dwyer BDPA-05-2-N Adjustable Differential Pressure Switch

    Product Details:

    Media Type Gas, Liquid

    Dwyer BDPA-05-2-N Adjustable Differential Pressure Switch
    Description
    Series BDPA Adjustable Differential Pressure Alarm .80-4.00″ w.c.

    24 Volt or Battery Powered, Built-in Audible and Visual Alarm

    The Series BDPA Adjustable Differential Pressure Alarm with built-in audible and visual set point indication is designed for overpressure, vacuum, and differential pressure applications. The scaled adjustment knob allows changes to the switching pressure to be made without a pressure gage. The silicone diaphragm and PA 6.6 body make the Series BDPA perfect for use with air and other noncombustible gases.

    The Series BDPA Adjustable Differential Pressure Alarms offer a versatile range of configurations allowing utilization of their many features. The BDPA can be powered by battery or 24 VDC/VAC line power. If connecting line power, the battery can act as back-up power in case of power outage. When set point threshold is reached, a local loud audible buzzer and bright LED will indicate periodically notifying of set point activation. An SPDT contact may also be wired to send a signal remotely to a DDC or building management system. A snooze button located through an opening in the cover can be pressed by the user to manually disengage the audible and visual indication until a maintenance operation is performed. If the instrument is mounted where it is difficult to access, a remote contact may be connected allowing the user to deactivate the buzzer and LED at the remote contact location.

    The Series BDPA Differential Pressure Alarm’s great functional versatility makes it perfect for filter, fan, and ventilation applications or any retrofit job where installing electrical wiring proves cost-prohibitive.

    Note: For a 1/2″ npt connection, use the 1/2″ conduit fitting adapter (A-483).

    Approvals

    CE Approval
    Reduction of Hazardous Substance (RoHS)

    Specification
    Service Air and noncombustible, compatible gases
    Wetted Materials Diaphragm: Silicone; Housing: Switch Body: PA 6.6 and POM; Cover: Polystyrene
    Temperature Limits 32 to 122°F (0 to 50°C)
    Pressure Limits 40″ w.c. (10 kPa)
    Electrical Rating 1.0 A @ 30 VDC/VAC
    Switch Type SPDT
    Alarm Indicationrm. Red LED and audible alarm
    Alarm Level Approximately 90 db at 4″ (10 cm)
    Alarm Acknowledge Button press
    Power Requirements 16 to 30 VDC, 18 to 30 VAC or 3.6 V LS14250 lithium metal battery, installed functional, user replaceable. Battery acts as back-up if power is lost
    Battery Life Approximately 1.5 years with 3.6 V/1.2 Ah
    Repeatability ±15% FS
    Electrical Connections Screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection
    Process Connections 5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing
    Mounting Orientation Vertically, with pressure connections pointing downwards
    Enclosure Rating IP21
    Weight 6.1 oz (173 g)
    Agency Approvals CE, RoHS

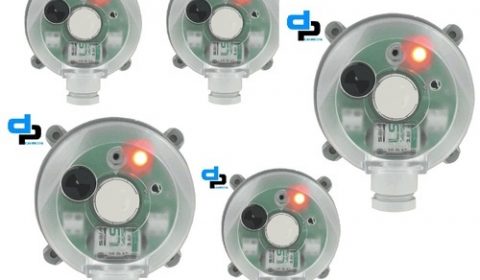

  • Dwyer BDPA-04-2-N Adjustable Differential Pressure Switch

    Dwyer BDPA-04-2-N Adjustable Differential Pressure Switch

    Product Details:

    Brand Baumer
    Media Type Gas, Liquid

    Dwyer BDPA-04-2-N Adjustable Differential Pressure Switch
    Description
    Series BDPA Adjustable Differential Pressure Alarm .12-1.60″ w.c.

    24 Volt or Battery Powered, Built-in Audible and Visual Alarm

    The Series BDPA Adjustable Differential Pressure Alarm with built-in audible and visual set point indication is designed for overpressure, vacuum, and differential pressure applications. The scaled adjustment knob allows changes to the switching pressure to be made without a pressure gage. The silicone diaphragm and PA 6.6 body make the Series BDPA perfect for use with air and other noncombustible gases.

    The Series BDPA Adjustable Differential Pressure Alarms offer a versatile range of configurations allowing utilization of their many features. The BDPA can be powered by battery or 24 VDC/VAC line power. If connecting line power, the battery can act as back-up power in case of power outage. When set point threshold is reached, a local loud audible buzzer and bright LED will indicate periodically notifying of set point activation. An SPDT contact may also be wired to send a signal remotely to a DDC or building management system. A snooze button located through an opening in the cover can be pressed by the user to manually disengage the audible and visual indication until a maintenance operation is performed. If the instrument is mounted where it is difficult to access, a remote contact may be connected allowing the user to deactivate the buzzer and LED at the remote contact location.

    The Series BDPA Differential Pressure Alarm’s great functional versatility makes it perfect for filter, fan, and ventilation applications or any retrofit job where installing electrical wiring proves cost-prohibitive.

    Note: For a 1/2″ npt connection, use the 1/2″ conduit fitting adapter (A-483).

    Approvals

    CE Approval
    Reduction of Hazardous Substance (RoHS)

    Specification
    Service Air and noncombustible, compatible gases
    Wetted Materials Diaphragm: Silicone; Housing: Switch Body: PA 6.6 and POM; Cover: Polystyrene
    Temperature Limits 32 to 122°F (0 to 50°C)
    Pressure Limits 40″ w.c. (10 kPa)
    Electrical Rating 1.0 A @ 30 VDC/VAC
    Switch Type SPDT
    Alarm Indicationrm. Red LED and audible alarm
    Alarm Level Approximately 90 db at 4″ (10 cm)
    Alarm Acknowledge Button press
    Power Requirements 16 to 30 VDC, 18 to 30 VAC or 3.6 V LS14250 lithium metal battery, installed functional, user replaceable. Battery acts as back-up if power is lost
    Battery Life Approximately 1.5 years with 3.6 V/1.2 Ah
    Repeatability ±15% FS
    Electrical Connections Screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection
    Process Connections 5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing
    Mounting Orientation Vertically, with pressure connections pointing downwards
    Enclosure Rating IP21
    Weight 6.1 oz (173 g)
    Agency Approvals CE, RoHS

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)

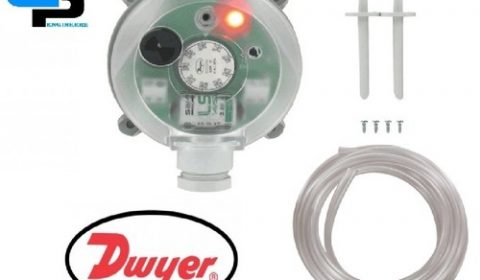

  • Dwyer BDPA-03-2-N Adjustable Differential Pressure Switch

    Dwyer BDPA-03-2-N Adjustable Differential Pressure Switch

    Product Details:

    Media Type Gas, Liquid

    Dwyer BDPA-03-2-N Adjustable Differential Pressure SwitchPRODUCT DESCRIPTIONDwyer Instruments BDPA-03-2-N, Adjustable differential pressure alarm, range .20-2.00 w.c., M20 connection.
    Adjustable differential pressure alarm, range .20-2.00 w.c., M20 connection.
    24 Volt or Battery Powered, Built-in Audible and Visual Alarm
    Item Specifications

    • Service: Air and noncombustible, compatible gases.
    • Wetted Materials: Diaphragm: Silicone; Housing: Switch Body: PA 6.6 and POM; Cover: Polystyrene.
    • Temperature Limits: 32 to 122°F (0 to 50°C).
    • pressure Limits: 40 w.c. (10 kPa).
    • Electrical Rating: 1.0 A @ 30 VDC/VAC/span>
    • Switch Type: SPDT.
    • Alarm Indicationrm.: Red LED and audible alarm.
    • Alarm Level: Approximately 90db at 4 (10 cm).
    • Alarm Acknowledge: Button preSS.
    • Power Requirements: 16 to 30 VDC, 18 to 30 VACor 3.6 V LS14250 lithium metal battery, installed functional, user replaceable. Battery acts as back-up if power is lost.
    • Battery Life: Approximately 1.5 years with 3.6 V/1.2 Ah.
    • Repeatability: _15% FS.
    • Electrical Connections: Screw terminals. M20x1.5 with cable strain relief or optional 1/2 NPT connection.
    • process Connections: 5/16 (7.94 mm) outside diameter tubing, 1/4 (6.0 mm) inside diameter tubing.
    • Mounting Orientation: Vertically, with pressure connections pointing downwards.
    • Weight: 6.1 oz (173 g).
    • Enclosure Rating: IP21.
    • Agency Approvals: CE, RoHS.
    • Dwyer Instruments
    • Pressure
    • Differential Pressure
    • Switches
  • Dwyer Air Filter Kit A – 481

    Dwyer Air Filter Kit A – 481

    Product Details:

    Condition Yes
    Filter Type Box Filter, Panel Filter, Bag Filter, Wire Mesh
    Filtration Grade Medium Filter, Hepa Filter, Ulpa Filter, Pre Filter
    Filtration Medium Material Synthetic Fiber, Fiberglass, Paper, PTFE, Melt Blown (PP), Microfiber
    Material of construction Aluminum, Stainless Steel, Plastic

    Dwyer Air Filter Kit A – 481

    A-481: DWYER Installer kit,(includes 2 static pressure tips and PVC tubing).

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)

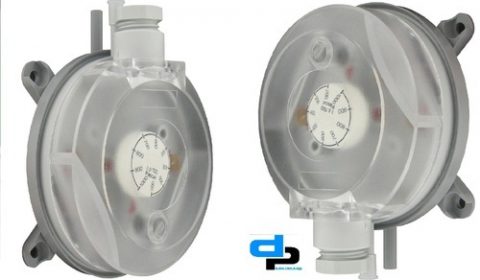

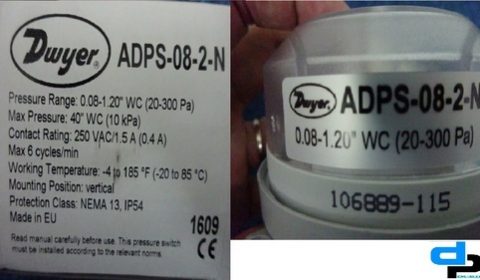

  • Dwyer ADPS-08-2-N Adjustable Differential Pressure Switch

    Dwyer ADPS-08-2-N Adjustable Differential Pressure Switch

    Product Details:

    Brand Honeywell, Baumer
    Media Type Gas, Liquid

    Dwyer ADPS-08-2-N Adjustable Differential Pressure Switch

    Adjustable differential pressure switch, set point range 0.08 to 1.20″ w.c., M20 connection.

    Features

    Available with settings from 0.08″ w.c. (20 Pa) up to 16″ w.c. (4000 Pa)
    The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases
    The compact size, adjustment knob and low cost make the ADPS the perfect choice for HVAC applications
    Specifications
    Service: Air and non-combustible, compatible gases
    Temperature Limits: Process and ambient temperature from -4 to 185°F (-20 to 85°C)
    Pressure Limits: Max. Operating Pressure: 40″ w.c. (10 kPa) for all pressure ranges
    Switch Type: Single-pole double-throw (SPDT)
    Electrical Rating: Max., 1.5A/250 VAC, max. switching rate: 6 cycles/min.; Gold Contact Option: 0.4 A/ 250 VAC
    Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection
    Process Connections: 5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing
    Enclosure Rating: NEMA 13, IP54
    Mounting Orientation: Vertically, with pressure connections pointing downwards
    Mechanical Working Life: Over 106 switching operations
    Weight: 5.6 oz (160 g)
    Applications
    Monitoring air filters and ventilators
    Monitoring industrial cooling-air circuits
    Overheating protection for fan heaters
    Monitoring flows in ventilation ducts
    Controlling air and fire-protection dampers
    Frost protection for heat exchanges

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)

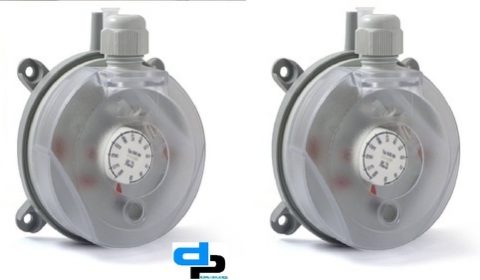

  • Dwyer ADPS-07-2-N Adjustable Differential Pressure Switch

    Dwyer ADPS-07-2-N Adjustable Differential Pressure Switch

    Product Details:

    Brand Baumer
    Media Type Gas, Liquid

    Dwyer ADPS-07-2-N Adjustable Differential Pressure Switch

    Adjustable differential pressure switch, set point range 4.00 to 20.00″ w.c., M20 connection.

    Features

    Available with settings from 0.08″ w.c. (20 Pa) up to 16″ w.c. (4000 Pa)
    The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases
    The compact size, adjustment knob and low cost make the ADPS the perfect choice for HVAC applications

    Specifications

    Service: Air and non-combustible, compatible gases
    Temperature Limits: Process and ambient temperature from -4 to 185°F (-20 to 85°C)
    Pressure Limits: Max. Operating Pressure: 40″ w.c. (10 kPa) for all pressure ranges
    Switch Type: Single-pole double-throw (SPDT)
    Electrical Rating: Max., 1.5A/250 VAC, max. switching rate: 6 cycles/min.; Gold Contact Option: 0.4 A/ 250 VAC
    Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection
    Process Connections: 5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing
    Enclosure Rating: NEMA 13, IP54
    Mounting Orientation: Vertically, with pressure connections pointing downwards
    Mechanical Working Life: Over 106 switching operations
    Weight: 5.6 oz (160 g)
    Applications

    Monitoring air filters and ventilators
    Monitoring industrial cooling-air circuits
    Overheating protection for fan heaters
    Monitoring flows in ventilation ducts
    Controlling air and fire-protection dampers
    Frost protection for heat exchanges

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Dwyer ADPS-06-2-N Adjustable Differential Pressure Switch

    Dwyer ADPS-06-2-N Adjustable Differential Pressure Switch

    Product Details:

    Brand Honeywell, Baumer
    Media Type Gas, Liquid

    Dwyer ADPS-06-2-N Adjustable Differential Pressure Switch

    Adjustable differential pressure switch, set point range 2.00 to 10.00″ w.c., M20 connection.
    Features
    Available with settings from 0.08″ w.c. (20 Pa) up to 16″ w.c. (4000 Pa)
    The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases
    The compact size, adjustment knob and low cost make the ADPS the perfect choice for HVAC applications

    Specifications

    Service: Air and non-combustible, compatible gases
    Temperature Limits: Process and ambient temperature from -4 to 185°F (-20 to 85°C)
    Pressure Limits: Max. Operating Pressure: 40″ w.c. (10 kPa) for all pressure ranges
    Switch Type: Single-pole double-throw (SPDT)
    Electrical Rating: Max., 1.5A/250 VAC, max. switching rate: 6 cycles/min.; Gold Contact Option: 0.4 A/ 250 VAC
    Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection
    Process Connections: 5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing
    Enclosure Rating: NEMA 13, IP54
    Mounting Orientation: Vertically, with pressure connections pointing downwards
    Mechanical Working Life: Over 106 switching operations
    Weight: 5.6 oz (160 g)

    Applications

    Monitoring air filters and ventilators
    Monitoring industrial cooling-air circuits
    Overheating protection for fan heaters
    Monitoring flows in ventilation ducts
    Controlling air and fire-protection dampers
    Frost protection for heat exchanges

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Dwyer ADPS-05-2-N Adjustable Differential Pressure Switch

    Dwyer ADPS-05-2-N Adjustable Differential Pressure Switch

    Product Details:

    Brand Siemens, Baumer
    Media Type Gas, Liquid

    Dwyer ADPS-05-2-N Adjustable Differential Pressure Switch
    Adjustable differential pressure switch, set point range 0.80 to 4.00″ w.c., M20 connection.
    Features
    Available with settings from 0.08″ w.c. (20 Pa) up to 16″ w.c. (4000 Pa)
    The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases
    The compact size, adjustment knob and low cost make the ADPS the perfect choice for HVAC applications
    Specifications
    Service: Air and non-combustible, compatible gases
    Temperature Limits: Process and ambient temperature from -4 to 185°F (-20 to 85°C)
    Pressure Limits: Max. Operating Pressure: 40″ w.c. (10 kPa) for all pressure ranges
    Switch Type: Single-pole double-throw (SPDT)
    Electrical Rating: Max., 1.5A/250 VAC, max. switching rate: 6 cycles/min.; Gold Contact Option: 0.4 A/ 250 VAC
    Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection
    Process Connections: 5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing
    Enclosure Rating: NEMA 13, IP54
    Mounting Orientation: Vertically, with pressure connections pointing downwards
    Mechanical Working Life: Over 106 switching operations
    Weight: 5.6 oz (160 g)
    Applications
    Monitoring air filters and ventilators
    Monitoring industrial cooling-air circuits
    Overheating protection for fan heaters
    Monitoring flows in ventilation ducts
    Controlling air and fire-protection dampers
    Frost protection for heat exchanges

    Additional Information:
