Category: Dwyer Magnehelic Gauge Wholesale Suppliers India

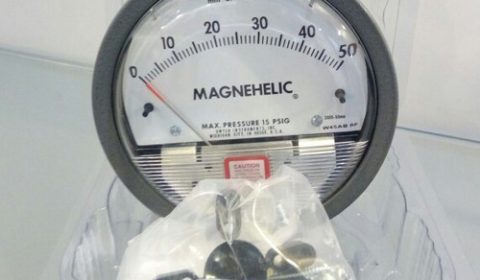

  • Magnehelic Gauge 0-50 Mm Dwyer

    Magnehelic Gauge 0-50 Mm Dwyer

    Product Details:

    Brand Dwyer

    Magnehelic Gauge 0-50 Mm Dwyer

    SpecificationMagnehelic® Gauge for high accuracy–guaranteed within 2% of full scale–and for the wide choice of 81 models available to suit your needs precisely. Using Dwyer’s simple, frictionless Magnehelic® Gauge movement, it quickly indicates low air or non-corrosive gas pressures–either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems. It’s inexpensive, too.

    The Magnehelic® Gauge is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid amplifier or fluidic systems. It also checks gas-air

    specifications – Service:Air and non-combustible, compatible gases. (Natural Gas option available.)
    – Housing:Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 hour salt spray corrosion test.
    – Pressure Limits:-20 in Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option; 35 psig (2.41 bar), HP option; 80 psig (5.52 bar).
    – Overpressure:Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. See Overpressure Protection note on Catalog page.
    – Temperature Limits:20 to 140°F.* (-6.67 to 60°C).
    – Mounting Orientation:Diaphragm in vertical position
    – Process Connections:1/8″ female NPT duplicate high and low pressure taps – one pair side and one pair back.
    – Weight:1 lb 2 oz (510 g); MP & HP 2 lb 2 oz (963 g).
    – Accuracy:±2% of FS (±3% on -0, -100PA, -125PA, -10MM and ±4% on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
    – Size:4″ (101.6 mm) diameter dial face. Description

    Gauge Type Magnehelic Differential
    Dial Size 100MM
    Pressure -20 in Hg. to 15 psig. (-0.677 bar to 1.034 bar); MP option; 35 psig (2.41 bar), HP option; 80 psig (5.52 bar)
    Yes! I am interested
  • OMICRON Differential Pressure Gauge

    OMICRON Differential Pressure Gauge

    Product Details:

    Wetted parts Ss 304

    OMICRON Differential Pressure Gauge USA

    We are leading supplier and trader of OMICRON Differential Pressure Gauge USA. Kindly find below product details of Low Cost Galaxy Differential Pressure Gauge.
    Product Details:
    Pressure Range Model Number Pressure Range

    Pa / kPa
    0 – 0.25” S2000-60PA 0 – 60
    0 – 0.5” S2000-125PA 0 – 125
    0 – 1” S2000-250PA 0 – 250
    0 – 2” S2000-500PA 0 – 500
    0 – 3” S2000-750PA 0 – 750
    0 – 4” S2000-1KPA 0 – 1
    0 – 5” S2000-1.5KPA 0 – 1.5
    0 – 6” S2000-2KPA 0 – 2
    0 – 8” Zero Center
    0 – 10” S2300-60PA 30 – 0 – 30
    0 – 15” S2300-120PA 60 – 0 – 60
    0 – 20” S2300-250PA 125 – 0 – 125
    0 – 25” mm w.c.
    0 – 30” S2000-6MM 0 – 6
    0 – 50” S2000-10MM 0 – 10
    0 – 100” S2000-25MM 0 – 25

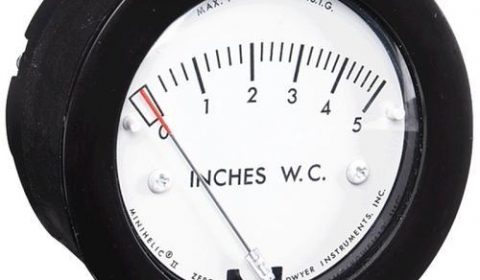

  • Minihelic II Differential Pressure Gauge Series 2-5000

    Minihelic II Differential Pressure Gauge Series 2-5000

    Minihelic® II Differential Pressure Gage Series 2-5000
    Combining clean design,small size and low cost with enough accuracy for all but the most demanding applications our SERIES 2-5000 Minihelic® II gage offers the latest in design features for a dial type differential pressure gage. It is our most compact gage but is easy to read and can safely operate at total pressures up to 30 psig.

    Product Applications

    Room Positive Pressure Sensing
    Local Indication on Filter Status
    Face Velocity on Fume Hood
    Duct Pressures
    Cabinet Air-Purging
    Medical Respiratory Equipment
    Air Samplers
    Electronic Air Cooling Systems
    Laminar Flow Hoods

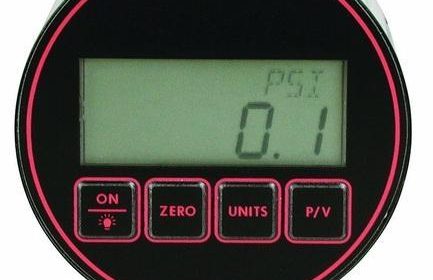

  • Series Wdg Weather Proof Digital Pressure Gauges

    Series Wdg Weather Proof Digital Pressure Gauges

    Product Details:

    Brand Dwyer

    The Series WDG Weatherproof Digital Pressure Gage measures gas and liquid pressure with high accuracy at an affordable price. It’s rugged weatherproof design stands up to outdoor and industrial environments. The 4-digit backlit display with four selectable units makes readings easily visible to prevent reading errors. The WDG comes with 304L stainless steel wetted material for a wide range of compatible liquids and gases.

    We are in the process of discontinuing this series, the suggested replacement is Series DPGA/DPGB.

    Product Applications

    • Pneumatic
    • Draft measurement
    • Filter monitoring
    • Industrial
    • Outdoor
    • HVAC roof-top
    • Flow

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)

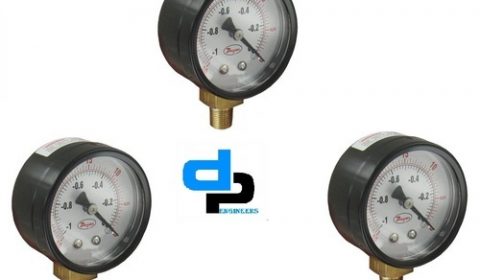

  • Series UGJ Utility Gage

    Series UGJ Utility Gage

    Product Details:

    Connection New, Bottom Connection
    Material Steel, Mild Steel

    Series UGJ Utility Gage
    The SERIES UGJ Utility Gages possess dual psi and bar (x100 kPa) scales with 2.5% accuracy. The 2″ UGJ gages are designed with black steel housings. Wetted parts include a brass socket and phosphor bronze tube. A wide offering of ranges are available from full vacuum to 300 psi.

    California Residents: Click Here for Proposition 65 WARNING.
    Product Applications

    Air regulators
    Pneumatic systems

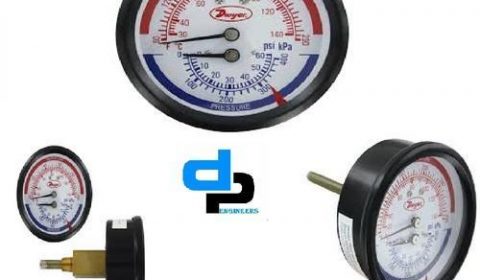

  • Series TRI2 Tridicator Gage

    Series TRI2 Tridicator Gage

    Series TRI2 Tridicator Gage
    The Series TRI2 combines the value of an individual pressure gage and thermometer in one instrument. These tridicators simplify installation which reduces time and saves money. The moveable dial with blue pressure markings and red temperature markings make the instrument easy to read. Pressure is indicated in both psi and kPa, while temperature is measured in both Fahrenheit and Celsius. Series TRI2 comes in three different connection options including lower mount, center back mount, and center back mount with extension shank.

  • Miniature Low Cost Differential Pressure Gauge Series S-5000

    Miniature Low Cost Differential Pressure Gauge Series S-5000

    Product Details:

    Brand sensocon

    Miniature Low Cost Differential Pressure Gauge Series S-5000
    Description
    The Series S-5000 is a low cost, diaphragm operated, differential pressure gauge in a miniature housing. The S-5000 can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 5%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.

  • Magnehelic Differential Pressure Gauge

    Magnehelic Differential Pressure Gauge

    Product Details:

    Brand dwyer
    Measuring Range 0-200 mm wc

    Select the Magnehelic® gage for high accuracy and for the wide choice of 81 models available to suit your needs precisely. Using Dwyer’s simple, frictionless Magnehelic® gage movement, it quickly indicates low air or non-corrosive gas pressures either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or levelling problems. It’s inexpensive, too.

    The Magnehelic® gage is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, the pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid amplifier or fluidic systems. It also checks gas-air ratio controls and automatic valves and monitors blood and respiratory pressures in medical care equipment.

    Note: May be used with Hydrogen. Order a Buna-N diaphragm.

    Product Applications:

    • Filter Monitoring
    • Air Velocity with Dwyer Pitot Tube
    • Blower Vacuum Monitoring
    • Fan Pressure Indication
    • Duct, Room or Building Pressures
    • Clean Room Positive Pressure Indication

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)

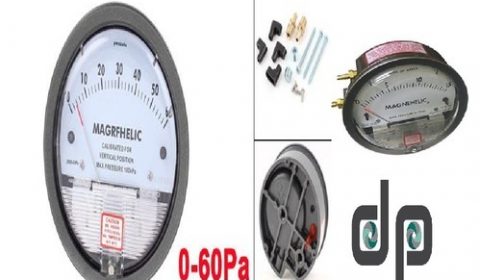

  • Dwyer Make Magnehellic Pressure Gauges

    Dwyer Make Magnehellic Pressure Gauges

    Product Details:

    Material Steel
    Condition New
    Connection New, Bottom Connection

    Dwyer Make Magnehellic Pressure Gauges Magnehellic Differential Pressure gauges:
    •Model : 2000 Series
    •Service : Air And Non- Combustile, compatible gases ( Natural gas option available)
    •Housing : Die Cast Aluminium Case & Bezel, With Acrylic Cover
    •Exterior Finish is Coated Gray to Withstand 168 Hour Salt Spray Corrosion test
    •Accuracy : +/- 2% Of F.S.
    •Pressure Limits : -20 in Hg To 15 Psig (-0.677 to 1.034 Bar) MP
    •Option : 35 psig ( 2.41 bar), HP option : 80 psig ( 5.52 Bar)
    •Overpressure : Relief Plug Opens At Approximately 25 Psig (1.72 bar), standard gauges only,
    •Temperature Limits : -6.67 to 60 Deg C
    •Size : 4″ (101.6 mm) Diameter Dial Face
    •Mounting Orientation : Diaphragm in Vertical Position. Consult Factory for other position orientations,
    •process connection : 1/8″ NPT (F) Duplicate High & Low
    •pressure Tapes-One Pair Side And One pair back

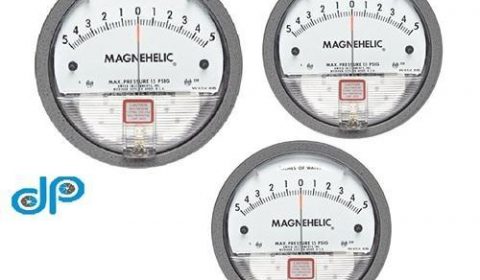

  • Dwyer 2000-20 CM Differential Pressure Gage

    Dwyer 2000-20 CM Differential Pressure Gage

    Dwyer 2000-20 CM Differential Pressure Gage

    Dwyer 2000-20CM Differential pressure gage, range 0-20 cm w.c. (cm of water), minor divisions .50.
    Using Dwyer’s simple, frictionless Magnehelic gage movement, it quickly indicates low air or non-corrosive gas pressures–either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems. It’s inexpensive, too.
    The Magnehelic gage is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid amplifier or fluidic systems. It also checks gas-air ratio controls and automatic valves, and monitors blood and respiratory pressures in medical care equipment.
    Note: May be used with Hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.

    Features
    Bezel provides flange for flush mounting in panel.
    Clear plastic face is highly resistant to breakage. Provides undistorted viewing of pointer and scale.
    Precision litho-printed scale is accurate and easy to read.
    Red tipped pointer of heat treated aluminum tubing is easy to see. It is rigidly mounted on the helix shaft.
    Pointer stops of molded rubber prevent pointer over-travel without damage.
    “Wishbone” assembly provides mounting for helix, helix bearings and pointer shaft.
    Jeweled bearings are shock-resistant mounted; provide virtually friction-free motion for helix. Motion damped with high viscosity silicone fluid.
    Zero adjustment screw is conveniently located in the plastic cover, and is accessible without removing the cover. O-ring seal provides pressure tightness.
    Helix is precision made from an alloy of high magnetic permeability. Mounted in jeweled bearings, it turns freely, following the magnetic field to move the pointer across the scale.
    Samarium Cobalt magnet mounted at one end of range spring rotates helix without mechanical linkages.
    Calibrated range spring is flat spring steel. Small amplitude of motion assures consistency and long life. It reacts to pressure on diaphragm. Live length adjustable for calibration.
    Silicone rubber diaphragm with integrally molded O-ring is supported by front and rear plates. It is locked and sealed in position with a sealing plate and retaining ring. Diaphragm motion is restricted to prevent damage due to overpressures.
    Die cast aluminum case is precision made and iridite-dipped to withstand 168 hour salt spray corrosion test. Exterior finished in baked dark gray hammerloid. One case size is used for all standard pressure options, and for both surface and flush mounting.
    Blowout plug of silicone rubber protects against overpressure on 15 psig rated models. Opens at approximately 25 psig.
    O-ring seal for cover assures pressure integrity of case.
