Category: Fan Coil Unit-Manufacture,suppliers in india

  • Replace HYDAC Cartridge Filter

    Replace HYDAC Cartridge Filter

    Product Details:

    Usage Air Filter, Oil Filter, Steam Filter

    In the hydraulic system, replacement HYDAC oil filter element used to filter out solid particles in the working medium and the colloidal material, effective control of pollution caused by the working medium.

    Specifications
    Replacement HYDAC filter 0240R series
    Out diameter 73.5mm
    Height 203mm
    O-Ring NBR
    Media Fiberglass

    Replacement of HYDAC Hydraulic Oil Filter Main Features:

    Filtration accuracy: 1 ~ 100μm

    Working temperature: -30 ℃ – + 110 ℃

    Nominal pressure: 21bar-210bar

    Applications: petroleum, chemical, aerospace, electronics, electric power, metallurgy,

    Sealing material: NBR: petroleum-based, oil-in-water emulsion, water glycol, hydraulic oil, lubricating rubber, Special synthetic fluids

    Modular design,Minimum pressure loss,compact structure,High efficient ,Mic or Sm-x filter elements, in accordance with ISO16889 assess large dirt holding capacity of ß value, high pressure differential to ensure optimum life of the filter cartridges,100% · bubble test

    Filtration: 5 to 100 microns, β value in line with ISO16889 standards

    Our Hydraulic Oil Filter Characters:

    We use the most advanced anti-corrosion effective microfiber agglomerate material as the filter body.The filter system is a combination of pre-filtration layer filter bed, microfiber layer, support layer, a filter layer and gravity sedimentation layer which can make solid particles above 3μm in the air can all be filtered out by compressor. The tiny oil dissolved gas about 0.01-1μm through the filter body is condensed into larger oil droplets accumulate in the bottom of the filter and then through the bottom of the filter recess back to the return line siphon compressor lubrication system to be excluded then get more pure, oil-free compressed air.

    Outstanding chemical compatibility for filtering acid, alkali and organic solvents

    Membrane is folded depth filtration, membrane filtration area big

    Low pressure, high dirt holding capacity and long service life

    Wide filtering accuracy are selectable

    Our Replacement of HYDAC Hydraulic Oil Filter Technology:

    (1). Filter material are composed of great fibers and resin through the unique process. fixed void structure make the filter material non-shedding. Intercepted pollution particles will not produce “discharge” phenomenon because of pressure and flow rate pulsating .

    (2) Use outside to the inside, along the flow direction gradually reduced gradient pore structure. Layered intercept contaminant particles of different sizes. Achieve deep contaminant. Thus greatly improving the service life.

    (3) Use spiral wound reinforcing support to ensure filter stability.

    Serious consequences of using poor quality hydraulic oil filters:

    Poor quality filter use poor quality filter material which make the filter effect is very poor, resulting in poor medium cleanliness level, the damage is to protect the life of components, severe cases may result in damage to the core components of the system.
    vInferior filter end caps and other pressure on the skeleton of the original material cut corners, filter life is shortened, increasing the user’s cost;
    Poor quality filters own bad processing technique meanwhile make the products unsightly, reduce filter life, damage oil filter easy then can’t make the oil filter reach good filtering effect.

    Our hydraulic oil filter own strict quality tested process to guarantee our product quality,so just rest assured about it.

  • Paint Booth Filters

    Paint Booth Filters

    Product Details:

    Size customized



    Paint Booth Filter

    We Offer‘s wide range of Paint Booth Filter to customers. Further, the offered Paint Booth Filter is extensively used in various suitable industrial and commercial applications. Moreover, the offered Paint Booth Filter is manufactured using optimum quality of material that sourced from certified vendors of the market.



    Features:

    • Low maintenance
    • Easy to operate
    • Cost effective
  • Stainless Steel Mesh Filtration Baskets

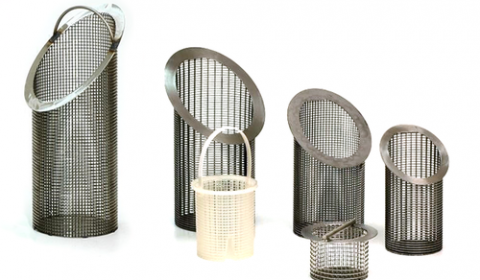

    Stainless Steel Mesh Filtration Baskets

    Product Details:

    Brand D.P.ENGINEERS

    Stainless Steel Mesh Filtration Baskets

    Category:Filter Element
    Material:SS Wire Mesh Stainless Steel Sheet
    Properties:Filter Element
    Application:
    Water Treatment,
    Oilfield, Mining,
    Food Industry,
    Chemical Industry,
    Paper Making Industry,
    Decoration.
    Tag:Sintered Stainless Steel,
    Mesh Filter Basket,
    Filter Element,

  • Galvanized Finish Fan Coil Unit

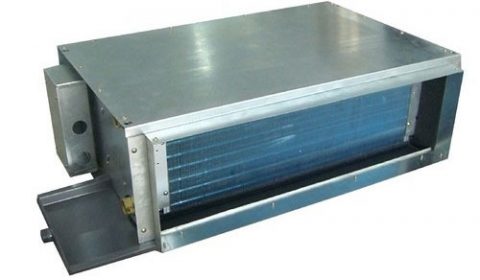

    Galvanized Finish Fan Coil Unit

    Product Details:

    Brand D.P.ENGINEERS
    Usage Industrial Use, Residential Use, Office Use



    Backed by a team of skilled professionals, our enterprise is able to offer a wide range of Fan Coil Unit that produces very less noise. Offered range is manufactured using finest quality raw material and advance technology under the strict industry laid norms. Our offered coil unit is available in different specifications and sizes as per the requirements of the clients. Apart from this, we deliver this coil unit within the promised time frame to our clients.



    Features:

    • Hassle-free performance
    • Finely finished
    • Corrosion resistance



    Specifications:

    • Capacity: 24000-27000 BTU
    • Power Type: AC
    • Cooling capacity: 2.247 to 13.965kW
    • Heating capacity: 3.251 to 22.137kW



    Fan coil units are available in two configurations:



    • Horizontal type suitable for ceiling suspension
    • Vertical type suitable for floor mounting



    Casing:



    • Galvanised sheets of heavy gauge steel with suitable drain tray to avoid sweating
    • The fan coil unit are (double skin) painted with stove paint/ h. T. Paint, electro static paint as per customer requirements



    Blowers:



    • The multi blade forward curved centrifugal type aluminium fan wheels statically and dynamically balanced are driven by extended shaft motor

    Fan Motor:



    • 3 speed, permanent split capacitor type motor with extended manual speed selection



    Drain Fan:



    • Heavy gauge
    • Double skin insulated drain pan extend full width of coil collect condensate from chilled water coils, valve and fitting with provision of drain nipple to avoid overflow



    Cooling Coil:



    • 3 row deep, 3/8 o. D. Copper tubing, aluminum fin construction provide maximum



    Heat transfer:



    • The water inlet and outlet are provided with flare nut for connections to control valves.



    Air Filter:



    • Filter is made of expanded aluminum mesh/ HDPE media/synthetic non-w oven media and is permanent cleanable type filter the air to a maximum deg.



    Technical Specifications:



    •     Model no enviro tech fan coil unit
    •     Ceiling suspended type unit
    •     Powder coating type unit
    •     Centrifugal blowers’ dwdi aluminum impeller with static & dynamically balanced
    •     Single phase motors
    •     Cooling coil copper pipes
    •     G. I. Sheet
    •     Drain tray with insulation
    •     Enviro tech industrial products fan coil unit model no – etipfcu
    •     Available size 1. 0 tr, 1. 5 tr, 2. 0 tr, 2. 5 tr, 3. 0 tr, 5. 0 tr
    •     Fan coil unit direct driven
    •     Fan coil unit v belt driven
    •     Fan coil unit horizontal arrangement
    •     Fan coil unit ceiling suspended
    •     Fan coil unit duct able ac
    •     Fan coil unit ac ducting system

    Applications:



    • Showroom.
    • Shopping Mall
    • Restaurant & Bar
    • Hotels
    • Office
    • Call Center
    • Building
    • Clean Room
    • Fan Coil Unit
  • Ceiling Concealed Fan Coil Unit

    Ceiling Concealed Fan Coil Unit

    Product Details:

    Brand D.P.ENGINEERS

    Ceiling Concealed Fan Coil Unit – D.P.ENGINEERS
    We are among the noted names in the industry, manufacturing and exporting Ceiling Concealed Fan Coil Unit for our revered customers. The offered units are designed in strict compliance with the industry standards and are characterized by low height and compact design.

    Specifications:

    • Capacity Range: 800 cm to 10,000 cm
    • Usage: Air Filter
    • Temp. Resistance: 80º C
    • The moisture-proof may reach 100%
  • Chilled Water Fan Coil Units

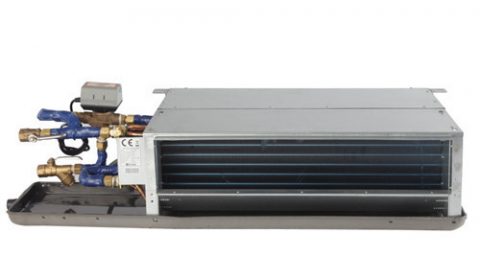

    Chilled Water Fan Coil Units

    Product Details:

    Capacity (In Tons) 5, 5
    Usage Industrial Use, Residential Use, Office Use

    Our Chilled Water Fan Coil Units vary are offered in the range of 1.0 to 2.5 tons with DX chilled water or heating coils for cooling & heating purpose. The units can be either placed on the floor or suspended from the ceiling. The cooling coils are made of copper tubing and sine wave aluminum fins with vent valve for air removing.

    Specifications:

    • Cooling coil copper pipes
    • Ceiling suspended type unit
    • Powder coating type unit
  • Industrial Fan Coil Units

    Industrial Fan Coil Units

    Product Details:

    Usage Industrial Use, Residential Use, Office Use

    We are able to offer Industrial Fan Coil Units. This coil unit is used in pharmaceutical and biotechnology industry for cooling purposes of air handling unit.

    Specifications:

    • Mounting: Wall/Window Mount
    • Type: Centrifugal Fan
    • Pipe: 2-Pipe Standard, 4-Pipe Optional
  • Ductable Fan Coil Units

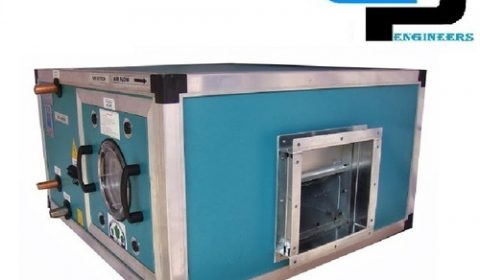

    Ductable Fan Coil Units

    Product Details:

    Brand D.P.ENGINEERS
    Usage Industrial Use, Residential Use, Office Use

    Ductable Fan Coil Units are featured with corrosion resistant heavy gauge galvanized steel casing that is attractively finished. These coil units are stringently tested on various predefined parameters in order to ensure quality.

    Specifications:

    • Capacity: 24000-27000 BTU
    • Power Type: AC
    • Cooling capacity: 2.247 to 13.965kW
    • Heating capacity: 3.251 to 22.137kW
  • Horizontal Fan Coil Units

    Horizontal Fan Coil Units

    Product Details:

    Brand D.P.ENGINEERS
    Usage Industrial Use, Residential Use, Office Use

    Horizontal Fan Coil Units
    With an aim to stand tall on the expectations of our esteemed clients, we are offering Horizontal Fan Coil Units which come with statically and dynamically balanced Centrifugal blowers for ensuring quieter operations. Our range is engineered to control air conditioning system of a room and buildings. Offered range is installed in several commercial sectors like offices, malls and shops for maintaining the inner temperature. This fan coil unit is available in G.I. construction; these are suitable for ceiling suspension.

    Features:

    • Low maintenance
    • Twin blowers set
    • 3 RD Chilled water coil


    Hide Away Type Horizontal Fcu’s With R.a. Box & Filters:

    • Twin blowers set
    • Available in G.I. construction, these are suitable for ceiling suspension
    • These come complete with R.A. Box & 3 ply Metallic filters, double skin sandwiched insulated drain tray & extended drain pan
    • Double extended shaft two/ three speed motors
    • Hideaway type fan coil units that are available in Horizontal/Vertical design
    • 20 FPT drain coupling
    • Unit shall be finished with powered coated finish (Suitable for free air discharge only, no suction recommended)
    • 3 RD Chilled water coil

    Specifications:

    Cooling Coil Properly expanded cooling that gives high efficiency & long life
    Drain Pan A double-skin construction for drain pan with sandwiched insulation in-between (Pan is liberally sized so as to catch condensate – drip from valves & accommodate – way motorised valve assembly)
  • Floor Mounting Fan Coil Units

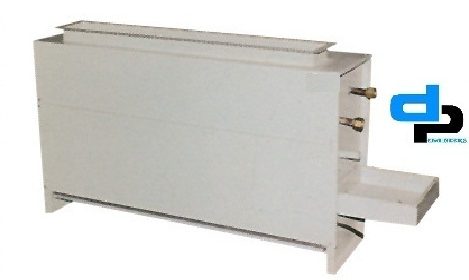

    Floor Mounting Fan Coil Units

    Product Details:

    Brand D.P.ENGINEERS
    Usage Industrial Use, Residential Use, Office Use

    We are engrossed in presenting a superior-grade collection of Floor Mounting Fan Coil Units. Available with us in a variety of sizes and provisions, we provide these to our patrons within the assured time period at their end as per their requirements.

    Specifications:

    • Cooling coil copper pipes
    • Ceiling suspended type unit
    • Powder coating type unit
