Category: Sensocon Magnehelic Gauge Wholesale Suppliers India

  • Digital Differential Pressure Gauge – Series A1

    Digital Differential Pressure Gauge – Series A1

    Product Details:

    Wetted Parts SS 304, SS 316

    Digital Differential Pressure Gauge – Series A1
    The Series A1 Digital Differential Pressure Gauge is a patented microprocessor based digital pressure gage for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges. The Series A1 digital differential pressure gauges utilize an extremely stable piezoresistive sensing technology to give a standard full scale accuracy of 1%. For applications requiring better accuracy, the A1 is also available with 0.5% or 0.25% accuracy. The A1 pressure gauge also has an optional 4-20 mA output for applications requiring an output signal. The A1 features a bright ½” LED display, which gives the gauge improved readability and precision. The A1 digital differential pressure gauges also feature 5 user selectable engineering units including in. w.c., mm w.c., cm w.c., kPa, and Pa. The Series A1 offers an improved look, and performance compared to mechanical gauges.

  • Digital Differential Pressure Gauge – Series A2

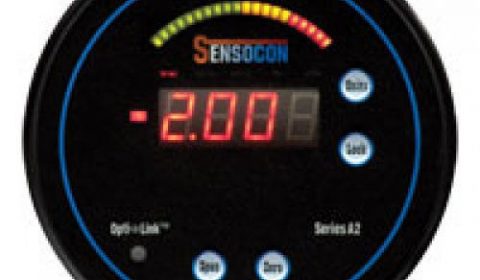

    Digital Differential Pressure Gauge – Series A2

    Product Details:

    Brand sensocon

    Digital Differential Pressure Gauge – Series A2
    The Series A2 digital differential pressure gauge is a patented microprocessor based digital pressure gage for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges.The Series A2 differential pressure gauges utilize an extremely stable piezoresistive sensing technology to give a standard full scale accuracy of 1%. For applications requiring better accuracy, the A2 is also available with 0.5% or 0.25% accuracy. The A2 digital differential pressure gauge also has an optional 4-20 mA output for applications requiring an output signal. The A2 features a bright ½” LED display and process arch, which gives the gauge improved readability and precision. The A2 digital differential pressure gauges also feature 5 user selectable engineering units including in. w.c., mm w.c., cm w.c., kPa, and Pa. The Series A2 offers an improved look, and performance compare to mechanical gauges.

  • DIN Digital Differential Pressure Control – Series B4

    DIN Digital Differential Pressure Control – Series B4

    Product Details:

    Digit Display Size Single Display
    Type Semi-Automatic, Automatic, Manual

    DIN Digital Differential Pressure Control – Series B4
    The Series B4 is a 1/8 DIN digital differential pressure controller for positive, negative, and differential pressure as well as velocity and flow. The patented Series B4 Differential Pressure Cotnroller includes (2) 8A SPDT relays, and an optional digitally scaleable 4-20 mA and 0-5 V output. The programmable control allows full configuration of variables such as setpoints, dead band, engineering units, flow coefficients, and more. The programming is done from a user friendly menu on the OLED display. The OLED also displays the exact setpoints or other user defined variables during normal operation. Furthermore, the menu structure can be customized by moving variables to different menu levels to accommodate user preferences. The Series B4 is easily mounted in a 1/8 DIN cut-out with a panel depth of only 2.1 inches (53 mm).

  • Digital Differential Pressure Control – Series A4

    Digital Differential Pressure Control – Series A4

    Product Details:

    Brand Dwyer
    Type Automatic, Semi-Automatic, Manual

    Digital Differential Pressure Control – Series A4
    The Series A4 digital differential pressure controller is a patented microprocessor based pressure controller for positive, negative, and differential pressure as well as velocity and flow. The Series A4 differential pressure controller includes (2) 8A SPDT relays and an associated programming menu that allows full configuration of variables such as setpoints, dead band, engineering units, flow coefficients, and more. The programming is done from a user friendly menu on the OLED display or uploaded using an Opti-Link™ programming key. The OLED also displays the exact setpoints or other user defined variables during normal operation. Furthermore, the menu structure can be customized by moving variables to different menu levels to accommodate many applications. Compared to other mechanical products, the Series A4 digital differential pressure controller has a significantly reduced depth, an improved look, and better performance at a similar price.

    Additional Information:

    • Pay Mode Terms: T/T (Bank Transfer)
  • Front Mount Pressure Gauge

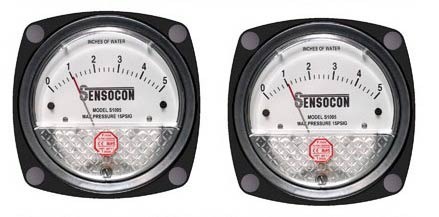

    Front Mount Pressure Gauge

    The Series S1000 Front Mount Differential Pressure Gauge makes panel mounting quick and easy. The S1000 is a diaphragm operated gauge for measuring positive, negative, or differential pressure. The S1000 was designed to allow quick installation saving time and money. This includes easy front mounting with 4 screws without any additional hardware required, and quick tubing connections with molded-in pressure fittings. The Series S1000 Front Mount Differential Pressure Gauge has a span adjustment on the back of the gauge for calibration adjustments. In addition to the time savings offered by the Series S1000 Differential Pressure Gauge, the gauge is based on the same rugged design as the S2000, which allows for years of trouble free operation.

    Pressure Limits:

    • -20” Hg to 15 PSI (-0.677 bar to 1.034 bar)
    • Media Compatibility:
    • Air and compatible gasses

    Accuracy:

    • +/- 2% full scale (+/- 3% on -0 and +/- 4% on -00) throughout range at 70°F (21°C)
    • Temperature Ranges:
    • 20° to 140°F (-7° to 60°C)
    • Housing Material: Die cast aluminum case with ABS flange and acrylic cover

    Process Connection:

    • Duplicate high and low recessed, push on connections for 3/16” tubing – one pair side and one pair back
    • Weight: 1 lb 2 oz (510 g)
    • Accessories: 2 connection plugs, 4 mounting screws, 4 screw caps, 2 static pressure connectors, and 3 feet of vinyl tubing
    • Agency Approvals:
    • RoHS, CE

    Specifications:

    • Indicating Pressure Reference: Differential Pressure Gauge
    • Features of Measurement Medium: General Pressure Gauge
    • Installation Structure: Direct Mounting
    • Function: Local Indication Type

    Specifications:

    • Case Color: Black
    • Material: Metal
    • Diameter: 85mm
  • Series 211 Differential Pressure Transmitter

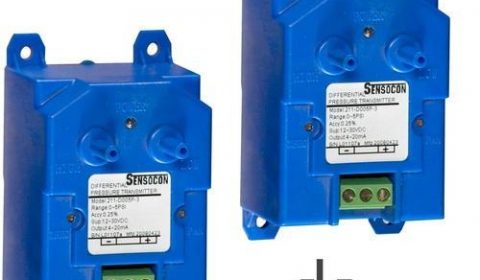

    Series 211 Differential Pressure Transmitter

    Product Details:

    Application Structure Pipe, Chemical Handling Pipe, Gas Pipe, Drinking Water Pipe
    Brand D.P.ENGINEERS
    Brand Sensocon

    Series 211 Differential Pressure Transmitter

    The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4-20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

    Model Pressure Range Accuracy
    211-D001I-1 0-1″ 1%
    211-D002I-1 0-2″ 1%
    211-D004I-1 0-4″ 1%
    211-D006I-3 0-6″ 0.25%
    211-D010I-3 0-10″ 0.25%
    211-D020I-3 0-20″ 0.25%
    211-D040I-3 0-40″ 0.25%
    211-D005P-3 0-5 PSI 0.25%
    211-D010P-3 0-10 PSI 0.25%
    211-D015P-3 0-15 PSI 0.25%
    211-D250A-1 0-250 Pa 1%
    211-D500A-1 0-500 Pa 1%
    211-D001K-1 0-1 kPa 1%
    211-D002K-3 0-2 kPa 0.25%
    211-D003K-3 0-3 kPa 0.25%
    211-D005K-3 0-5 kPa 0.25%
    211-D010K-3 0-10 kPa 0.25%
    211-D025K-3 0-25 kPa 0.25%
    211-D050K-3 0-50 kPa 0.25%
    211-D100K-3 0-100 kPa 0.25%

    *For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.

  • Series 104 – Differential Pressure Switch

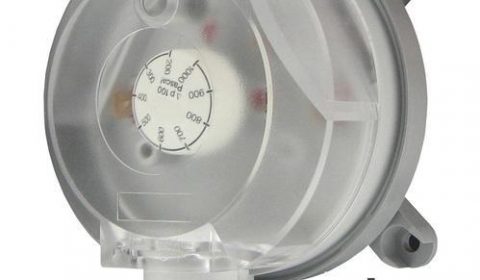

    Series 104 – Differential Pressure Switch

    Product Details:

    Application Structure Pipe, Plumbing Pipe, Chemical Handling Pipe, Gas Pipe, Drinking Water Pipe, www.dpengineer.co.in
    Brand dp engineers
    Brand dp engineers
    Media Type Gas , Liquid
    Media Type Gas, Liquid

    Series 104 – Differential Pressure Switch

    The Series 104 Differential Pressure Switch is a low-cost easy to use differential pressure switch for very low pressure applications. The differential pressure switch can monitor positive, negative, or differential pressure and with an easy to adjust set point knob makes field set up and adjustment hassle free. The differential pressure switch includes a SPDT relay rated for2A @ 250V and can be set as low as 0.08” w.c. (20 Pa).
    Model Number Pressure range in w.c. (Pa)
    104-0 0.08 to 1.2 (20-300 Pa)
    104-1 0.12 to 1.2 (30-300 Pa)
    104-2 0.20 to 2.00 (50-500 Pa)
    104-3 0.80 to 4.00 (200-1000 Pa
  • Sensocon Digital Differential Pressure Gauge

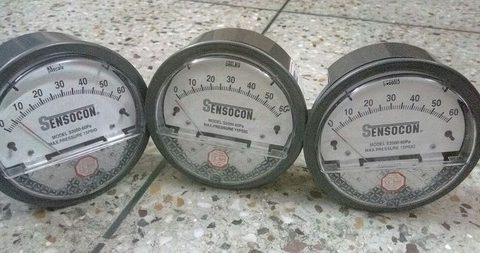

    Sensocon Digital Differential Pressure Gauge

    Sensocon Digital Differential Pressure Gauge
    We are one step ahead of our competitors in manufacturing and supplying a wide range of Low Cost Sensocon Differential Pressure Gauge. These premium quality products are manufactured using high-grade raw material, which is obtained from the most authentic and leading vendor in the market. Skilled professionals are hired to provide proper guidelines to our staff to manufacture high quality range of these products. The product is used for various purposes in different industries like filter Status, Duct Static, Pressure Clean Room Pressure, Building Pressure,Fan and Blower Pressure.

    Specifications:

    • Accuracy 2%
    • Mounts in Industry
    • Type : Arrow indicator
    • Die Cast Aluminum Housing
    • Standard Holes
    • Temperature : 20 to 140 F

    Specifications:

    • Color: Black
    • Accuracy: 1% or 0.5%
    • Universal Power: 24-240 VAC/VDC



  • Sensocon Differential Pressure Gauge

    Sensocon Differential Pressure Gauge

    Product Details:

    Brand senocon

    Sensocon Differential Pressure Gauge
    We are one step ahead of our competitors in manufacturing and supplying a wide range of Low Cost Sensocon Differential Pressure Gauge. These premium quality products are manufactured using high-grade raw material, which is obtained from the most authentic and leading vendor in the market. Skilled professionals are hired to provide proper guidelines to our staff to manufacture high quality range of these products. The product is used for various purposes in different industries like filter Status, Duct Static, Pressure Clean Room Pressure, Building Pressure,Fan and Blower Pressure.

    Specifications:

    • Accuracy 2%
    • Mounts in Industry
    • Type : Arrow indicator
    • Die Cast Aluminum Housing
    • Standard Holes
    • Temperature : 20 to 140 F
