Category: Differential Pressure Gage – Dwyer Instruments Who

  • Dwyer USA DM-1107 DigiMag Differential Pressure Gauge

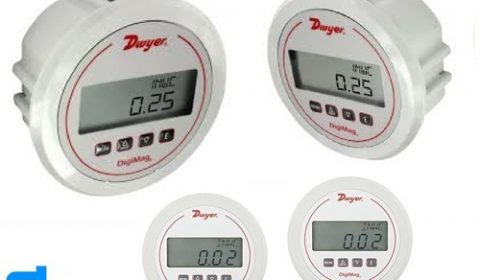

    Dwyer USA DM-1107 DigiMag Differential Pressure Gauge

    DWYER USA DM-1107 DIGIMAG DIFFERENTIAL PRESSURE GAUGEDwyer Instruments DM-1107DigiMag? Differential Digital Pressure Gage,0-5″w.c

    The DigiMag Series DM-1000 Digital Differential Pressure and Flow gauge monitor the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic Differential Pressure Gage. All models are factory calibrated to specific ranges. The 4-digit LCD can display readings in common English and metric units so conversions are not necessary. The simplified four button operation reduces set up time and simplifies calibration with its digital push button zero and span. The DigiMag Digital gauge are more versatile than analog gauge with their ability to be field-programmed to select pressure, air velocity or flow operation depending on model. The DigiMag Digital Gauges have an added feature for filter applications where a set point can be input where the display will blink when the filter is dirty, alerting the user that a maintenance action needs to occur. Programming the Series DM-1000 is easy using the menu key to access 4 simplified menus which provide access to, depending on model: security level; engineering units; K-factor for use with various Pitot tubes and flow sensors circular or rectangular duct size for volumetric flow operation; filter set point; view peak and valley process readings; digital damping for smoothing erratic process applications; display update to conserve battery life; zero and span field calibration. The Series DM-1000 DigiMag Digital Differential Pressure and Air Flow gauge possess a full-scale accuracy of 1% on ranges down to 2 in H2O and 2% accuracy down to the very low range of 1 inch to 0.25 in H2O. DigiMag Digital Differential Pressure gauge offer power versatility by working with 9-24 VDC line power or simply 9V battery power. If using line power and connecting the 9V battery, the battery will act as a back-up if line power is lost or interrupted.

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Dwyer DM-2006-LCD Pressure Transmitter

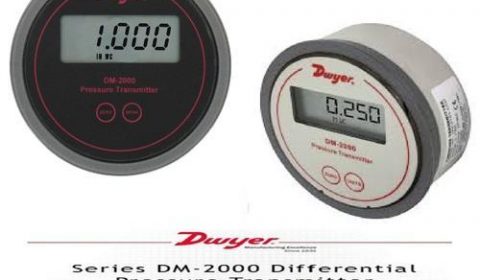

    Dwyer DM-2006-LCD Pressure Transmitter

    Dwyer DM-2006-LCD PRESSURE TRANSMITTER

    A wide range of models are available factory calibrated to specific ranges
    Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy
    Digital push-button zero and span simplify calibration over typical turn-potentiometers
    An optional 3.5 digit LCD shows process and engineering units
    A single bush button allows field selection of 4 to 6 engineering units depending on range on LCD models
    Specifications

    Service: Air and non-combustible, compatible gases.
    Wetted Materials: Consult Factory.
    Accuracy: ±1% F.S. at 70°F.
    Stability: +1% F.S./yr.
    Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
    Pressure Limits: 10 psig (0.69 bar).
    Thermal Effect: ±0.055% F.S./°F (0.099% F.S./°C).
    Power Requirements: 10-35 VDC (2 wire).
    Output Signal: 4 to 20 mA.
    Zero and Span Adjustments: Digital push-button zero and span.
    Loop Resistance: DC: 0-1250 ohms maximum.
    Current Consumption: DC: 38 mA maximum.
    Electrical Connections: Screw-type terminal block.
    Display: 3.5 digit LCD, 0.7″ height.
    Process Connections: 1/8″ I.D. tubing.
    Mounting Orientation: Vertical.
    Weight: 4.8 oz (136 g).

    Model

    DM-2006-LCD

    Description

    Differential pressure transmitter, range 3.00″ w.c., 746 Pa, 76.2 mm w.c., 7.46 mbar, .746 kPa, .108 psi.

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Dwyer DM-2005-LCD Pressure Transmitter

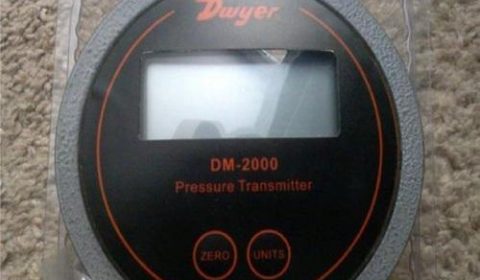

    Dwyer DM-2005-LCD Pressure Transmitter

    Dwyer DM-2005-LCD PRESSURE TRANSMITTER

    A wide range of models are available factory calibrated to specific ranges.
    Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy.
    Digital push-button zero and span simplify calibration over typical turn-potentiometers
    An optional 3.5 digit LCD shows process and engineering units.
    A single bush button allows field selection of 4 to 6 engineering units depending on range on LCD models.
    Specifications
    Service: Air and non-combustible, compatible gases.
    Wetted Materials: Consult Factory.
    Accuracy: ±1% F.S. at 70°F.
    Stability: +1% F.S./yr.
    Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
    Pressure Limits: 10 psig (0.69 bar).
    Thermal Effect: ±0.055% F.S./°F (0.099% F.S./°C).
    Power Requirements: 10-35 VDC (2 wire).
    Output Signal: 4 to 20 mA.
    Zero and Span Adjustments: Digital push-button zero and span.
    Loop Resistance: DC: 0-1250 ohms maximum.
    Current Consumption: DC: 38 mA maximum.
    Electrical Connections: Screw-type terminal block.
    Display: 3.5 digit LCD, 0.7″ height.
    Process Connections: 1/8″ I.D. tubing.
    Mounting Orientation: Vertical.
    Weight: 4.8 oz (136 g).
    Model
    DM-2005-LCD
    Description
    Differential pressure transmitter, range 2.00″ w.c., 497 Pa, 50.8 mm w.c., 4.97 mbar, .497 kPa.

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Dwyer DM-2004-LCD Pressure Transmitter

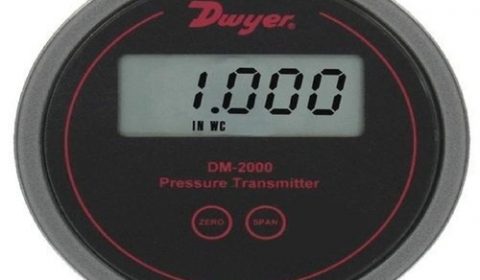

    Dwyer DM-2004-LCD Pressure Transmitter

    Dwyer DM-2004-LCD PRESSURE TRANSMITTER

    A wide range of models are available factory calibrated to specific ranges.
    Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy.
    Digital push-button zero and span simplify calibration over typical turn-potentiometers
    An optional 3.5 digit LCD shows process and engineering units.
    A single bush button allows field selection of 4 to 6 engineering units depending on range on LCD models.
    Specifications

    Service: Air and non-combustible, compatible gases.
    Wetted Materials: Consult Factory.
    Accuracy: ±1% F.S. at 70°F.
    Stability: +1% F.S./yr.
    Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
    Pressure Limits: 10 psig (0.69 bar).
    Thermal Effect: ±0.055% F.S./°F (0.099% F.S./°C).
    Power Requirements: 10-35 VDC (2 wire).
    Output Signal: 4 to 20 mA.
    Zero and Span Adjustments: Digital push-button zero and span.
    Loop Resistance: DC: 0-1250 ohms maximum.
    Current Consumption: DC: 38 mA maximum.
    Electrical Connections: Screw-type terminal block.
    Display: 3.5 digit LCD, 0.7″ height.
    Process Connections: 1/8″ I.D. tubing.
    Mounting Orientation: Vertical.
    Weight: 4.8 oz (136 g).
    Model

    DM-2004-LCD

    Description

    Differential pressure transmitter, range 1.00″ w.c., 249 Pa, 25.4 mm w.c., 2.49 mbar, .249 kPa.

  • Dwyer DM-2003-LCD Differential Pressure Transmitter

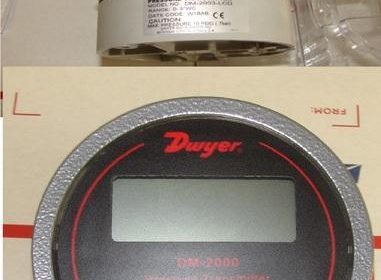

    Dwyer DM-2003-LCD Differential Pressure Transmitter

    Dwyer DM-2003 PRESSURE TRANSMITTER, 0 – 0.5

    • A wide range of models are available factory calibrated to specific ranges
    • Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy
    • Digital push-button zero and span simplify calibration over typical turn-potentiometers
    • An optional 3.5 digit LCD shows process and engineering units
    • A single bush button allows field selection of 4 to 6 engineering units depending on range on LCD models

    Specifications

    Service: Air and non-combustible, compatible gases.
    Wetted Materials: Consult Factory.
    Accuracy: ±1% F.S. at 70°F.
    Stability: +1% F.S./yr.
    Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
    Pressure Limits: 10 psig (0.69 bar).
    Thermal Effect: ±0.055% F.S./°F (0.099% F.S./°C).
    Power Requirements: 10-35 VDC (2 wire).
    Output Signal: 4 to 20 mA.
    Zero and Span Adjustments: Digital push-button zero and span.
    Loop Resistance: DC: 0-1250 ohms maximum.
    Current Consumption: DC: 38 mA maximum.
    Electrical Connections: Screw-type terminal block.
    Display: 3.5 digit LCD, 0.7″ height.
    Process Connections: 1/8″ I.D. tubing.
    Mounting Orientation: Vertical.
    Weight: 4.8 oz (136 g).

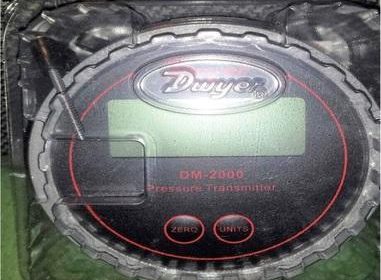

  • Dwyer DM-2002-LCD Differential Pressure Transmitter

    Dwyer DM-2002-LCD Differential Pressure Transmitter

    Dwyer DM-2002-LCD Differential Pressure Transmitter

    A wide range of models are available factory calibrated to specific ranges
    Pressure connections are inherent to the glass filled plastic molded housing making installation quick and easy
    Digital push-button zero and span simplify calibration over typical turn-potentiometers
    An optional 3.5 digit LCD shows process and engineering units
    A single bush button allows field selection of 4 to 6 engineering units depending on range on LCD models
    Specifications

    Service: Air and non-combustible, compatible gases.
    Wetted Materials: Consult Factory.
    Accuracy: ±1% F.S. at 70°F.
    Stability: +1% F.S./yr.
    Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
    Pressure Limits: 10 psig (0.69 bar).
    Thermal Effect: ±0.055% F.S./°F (0.099% F.S./°C).
    Power Requirements: 10-35 VDC (2 wire).
    Output Signal: 4 to 20 mA.
    Zero and Span Adjustments: Digital push-button zero and span.
    Loop Resistance: DC: 0-1250 ohms maximum.
    Current Consumption: DC: 38 mA maximum.
    Electrical Connections: Screw-type terminal block.
    Display: 3.5 digit LCD, 0.7″ height.
    Process Connections: 1/8″ I.D. tubing.
    Mounting Orientation: Vertical.
    Weight: 4.8 oz (136 g).

    Model

    DM-2002-LCD

    Description

    Differential pressure transmitter, range .250″ w.c., 62.2 Pa, 6.35 mm w.c., .622 mbar.

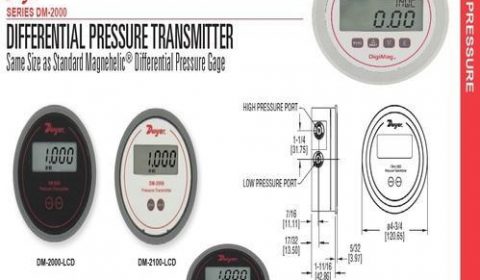

  • Dwyer DM-2001-LCD Differential Pressure Transmitter

    Dwyer DM-2001-LCD Differential Pressure Transmitter

    Dwyer DM-2001-LCD Differential Pressure Transmitter

    The Dwyer Series DM-2000 Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM-2000 housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic gage. A wide range of models are available factory calibrated to specific ranges.
    Model
    DM-2001-LCD
    Description
    Differential pressure transmitter, range .100″ w.c., 24.9 Pa, 2.54 mm w.c., .249 mbar, with LCD.

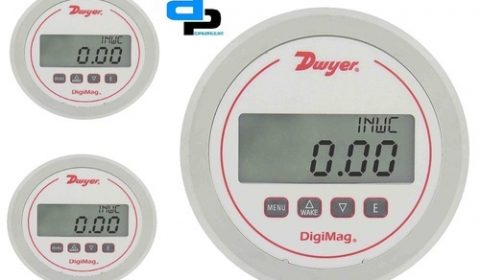

  • Dwyer DM-1105 DigiMag Differential Pressure & Flow Gauge

    Dwyer DM-1105 DigiMag Differential Pressure & Flow Gauge

    Dwyer DM-1105 DigiMag Differential Pressure & Flow Gauge (0-2″w.c.)

    The Dwyer DM-1105 DigiMag Digital Pressure Gage has a range from 0-0.2″ w.c. and with a resolution of 0.001 w.c.

    The DigiMag® Series DM-1000 Digital Differential Pressure and Flow Gages” widows: 2;” background-position: initial initial; background-repeat: initial initial;monitor the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic® Differential Pressure Gage. All models are factory calibrated to specific ranges. The 4-digit LCD can display readings in common English and metric units so conversions are not necessary. The simplified four button operation reduces set up time and simplifies calibration with its digital push button zero and span.

    The DigiMag® Digital Gages are more versatile than analog gages with their ability to be field-programmed to select pressure, air velocity or flow operation depending on model. The DigiMag® Digital Gages have an added feature for filter applications where a set point can be input where the display will blink when the filter is dirty, alerting the user that a maintenance action needs to occur.

    Programming the Series DM-1000 is easy using the menu key to access 4 simplified menus which provide access to, depending on model: security level; engineering units; K-factor for use with various Pitot tubes and flow sensors circular or rectangular duct size for volumetric flow operation; filter set point; view peak and valley process readings; digital damping for smoothing erratic process applications; display update to conserve battery life; zero and span field calibration.
    The Series DM-1000 DigiMag® Digital Differential Pressure and Air Flow Gages possess a full-scale accuracy of 1% on ranges down to 2 in w.c. and 2% accuracy down to the very low range of 1 inch to 0.25 in w.c. DigiMag® Digital Differential Pressure Gages offer power versatility by working with 9-24 VDC line power or simply 9V battery power. If using line power and connecting the 9V battery, the battery will act as a back-up if line power is lost or interrupted

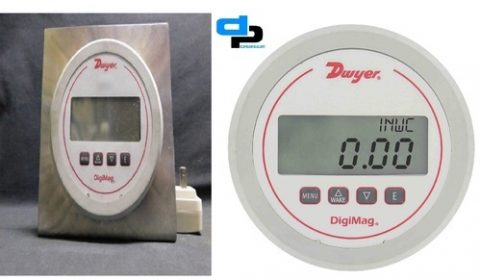

  • Dwyer DM-1103 DigiMag Digital Pressure Gage

    Dwyer DM-1103 DigiMag Digital Pressure Gage

    Dwyer DM-1103 DigiMag Digital Pressure Gage With Range of 0 to 0.5 in w.c.
    The Dwyer DM-1103 DigiMag Digital Pressure Gage has a range from 0-0.5″ w.c. and with a resolution of 0.001 w.c.
    The DigiMag® Series DM-1000 Digital Differential Pressure and Flow Gages” widows: 2;” background-position: initial initial; background-repeat: initial initial;monitor the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic® Differential Pressure Gage. All models are factory calibrated to specific ranges. The 4-digit LCD can display readings in common English and metric units so conversions are not necessary. The simplified four button operation reduces set up time and simplifies calibration with its digital push button zero and span.

    The DigiMag® Digital Gages are more versatile than analog gages with their ability to be field-programmed to select pressure, air velocity or flow operation depending on model. The DigiMag® Digital Gages have an added feature for filter applications where a set point can be input where the display will blink when the filter is dirty, alerting the user that a maintenance action needs to occur.

    Programming the Series DM-1000 is easy using the menu key to access 4 simplified menus which provide access to, depending on model: security level; engineering units; K-factor for use with various Pitot tubes and flow sensors circular or rectangular duct size for volumetric flow operation; filter set point; view peak and valley process readings; digital damping for smoothing erratic process applications; display update to conserve battery life; zero and span field calibration.

    The Series DM-1000 DigiMag® Digital Differential Pressure and Air Flow Gages possess a full-scale accuracy of 1% on ranges down to 2 in w.c. and 2% accuracy down to the very low range of 1 inch to 0.25 in w.c. DigiMag® Digital Differential Pressure Gages offer power versatility by working with 9-24 VDC line power or simply 9V battery power. If using line power and connecting the 9V battery, the battery will act as a back-up if line power is lost or interrupted.

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Dwyer DM-1102 DigiMag Differential Pressure Gauge

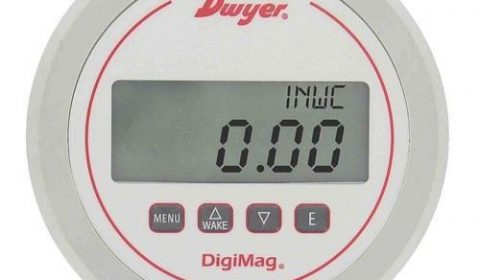

    Dwyer DM-1102 DigiMag Differential Pressure Gauge

    Product Details:

    Brand Dwyer
    Model Dwyer DM 1102

    Dwyer DM-1102 DigiMag Differential Pressure Gauge
    The DigiMag Series DM-1000 Digital Differential Pressure and Flow Gages monitor the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic Differential Pressure Gage. All models are factory calibrated to specific ranges. The 4-digit LCD can display readings in common English and metric units so conversions are not necessary. The simplified four button operation reduces set up time and simplifies calibration with its digital push button zero and span. The DigiMag Digital Gages are more versatile than analog gages with their ability to be field-programmed to select pressure, air velocity or flow operation depending on model. The DigiMag Digital Gages have an added feature for filter applications where a set point can be input where the display will blink when the filter is dirty, alerting the user that a maintenance action needs to occur. Programming the Series DM-1000 is easy using the menu key to access 4 simplified menus which provide access to, depending on model: security level; engineering units; K-factor for use with various Pitot tubes and flow sensors circular or rectangular duct size for volumetric flow operation; filter set point; view peak and valley process readings; digital damping for smoothing erratic process applications; display update to conserve battery life; zero and span field calibration. The Series DM-1000 DigiMag Digital Differential Pressure and Air Flow Gages possess a full-scale accuracy of 1% on ranges down to 2 in H2O and 2% accuracy down to the very low range of 1 inch to 0.25 in H2O. DigiMag Digital Differential Pressure Gages offer power versatility by working with 9-24 VDC line power or simply 9V battery power. If using line power and connecting the 9V battery, the battery will act as a back-up if line power is lost or interrupted.

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
