Category: Hepa Filters-Manufactures,Suppliers in India

  • Semi HEPA Filter

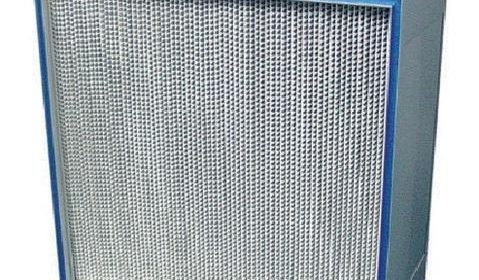

    Semi HEPA Filter

    Product Details:

    Filtration Capacity (microns) 0-0.25, 0.25-0.5, 0.5-1, 1-2, 2-3
    Flow Capacity Range 0-500 cfm, 500-1000 cfm, 1000-1500 cfm, 1500-2000 cfm, >2000 cfm
    Frame Material MS, G.I., Aluminium, Wooden, Stainless Steel
    HEPA Filter Type Type A, Type B, Type C, Type D, Type E



    Semi HEPA Filter

    Suitable for:

    • Air filtration of 0.3µ to 1µ w particles.
    • Secondary filtration for in Critical Clean room Industry Such as Vaccine, Production Work, Injection filling Work etc.
    • Final filtration in Minor 0.T S & in-patient-care, Photo Film Industry.

    Features:

    • Filter media micro fiber glass snd paper deep pleasted panel
    • Media support aluminum foil / hot melt
    • Frame material aluminum / GI
    • Frame type box / flange / channel
    • Max. Op. Temp. 80oC
    • Sealant epoxy sealed
    • Gasket syn rubber

    Specifications:

    • Medium Material: Fiberglass
    • Efficiency: 99.99%
    • Filtration Grade: HEPA Filter

  • Pleat HEPA Filter

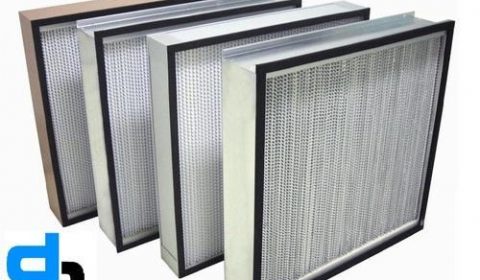

    Pleat HEPA Filter

    Product Details:

    Filtration Capacity (microns) 0-0.25, 0.25-0.5, 0.5-1, 1-2, 2-3
    Flow Capacity Range 0-500 cfm, 500-1000 cfm, 1500-2000 cfm, >2000 cfm
    Frame Material MS, G.I., Aluminium, Wooden, Stainless Steel
    HEPA Filter Type Type A, Type B, Type C, Type D, Type E



    We put forward a broad range of HEPA Filter It is ideally suitable for protection against harmful particles emitted from radioactive substances. Our offered filter is manufactured in adherence with the set industry standards using advanced technology and optimum quality raw material. In tune with international quality standard, we provide the entire range in various sizes and specifications as per the requirement of our clients. Our quality controllers perform a series of test on various parameters, in order to ensure the quality of this filter. Apart from this, clients can avail the entire range from us at industry leading rates.

    Features:

    • Easy to clean
    • High efficiency
    • Compact size


    Technical Specifications:

    • Flange Type & Box Type
    • Sizes Available: 610 mm x 610 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm
    • Customized Sizes Are Available On Request
    • Filtration Rating: 0. 3 Micron & More
    • Frame Material: SS 304 / GI (Galvanized Steel) / Aluminum.
    • Filtration Efficiency: 90- 99. 9 %
    • Filter Media: Glass Fiber Media / Spun Bonded Polyester Media.
    • H14 – 99.999% @ 0.3 micron


    Specifications:

    No. Sizes in Inches Flow (cfm)
    1. 12 x 12 x 6 90
    2. 24 x 18 x 12 750
    3. 24 x 36 x 6 750
    4. 24 x 24 x 6 500
    5. 24 x 24 x 12 1000
    6. 24 x 48 x 6 1000

    Specifications:

    • Dimension: Customized
    • Frame: Stainless Steel
    • Medium Material: Fiberglass
  • Mini Pleated HEPA Filter

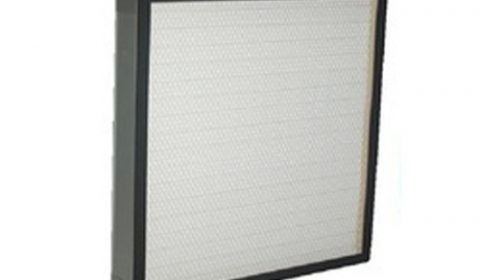

    Mini Pleated HEPA Filter

    Product Details:

    Length 5″-10″, 10″-15″, 15″-20″, 20″-25″, >25″, 5,10,15,20,>25
    Diameter 0-1″, 1″-2″, 2″-3″, 3″-4″, >4″, 0-1,1,2,3,>4
    Filter Medium Material Activated Carbon, Cotton, Fiberglass, Microfiber, Paper
    Usage Air Filter, Water Filter, Oil Filter, Steam Filter

    As per the variegated requirements of our clients, we are offering a broad collection of Mini Plate HEPA Filter. The offered filters has the ability to capture 99. 97% of particles 0. 3 microns in diameter. These products are manufactured using excellent quality raw material and latest technology by our skilled professionals. In order to ensure quality, these products are stringently tested on various parameters by our experts. Apart from this, remarkable quality and easy installation increase the demand of our offered range in the market.

    Features:

    • Low pressure drop due to pleated configuration
    • Easy to install
    • Good mechanical strength



    Technical specifications:

    • flange type & box type
    • customized sizes are available on request
    • filtration rating: 0. 3 micron & more
    • frame material: ss 304 / gi (galvanized steel) / aluminum.
    • filtration efficiency: 90 – 99. 9 %
    • filter media: glass fiber media / spun bonded polyester media.
    • Common specifications.
    Dimensions (mm) Filter area (m²) Wind speed at 0.45m/s the resistance(Pa) Rated air flow

    (m³/h)

    width×height×depth
    305×305×69 2.7 200-220 250
    305×610×69 5.5 500
    610×610×69 11.3 1000
    915×610×69 17.0 1500
    1219×610×69 22.7 2000
    305×305×90 3.7 300
    305×610×90 7.5 550
    610×610×90 15.4 1100
    915×610×90 23.2 1600
    1219×610×90 31.1 2500
    305×305×135 3.6 300
    305×610×135 7.4 550
    610×610×135 14.7 1100
    915×610×135 22.0 1600
    1219×610×135 29.4 2500

    Other Information

    • Pay Mode Terms: T/T (Bank Transfer)

    Specifications:

    • Efficiency: >99.99%
    • Medium Material: Fiberglass
    • Dimension: Customized
  • High Efficiency Particulate Air Filter

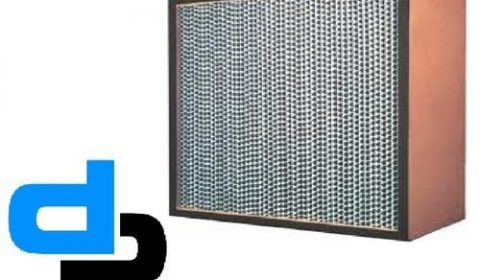

    High Efficiency Particulate Air Filter

    Product Details:

    Filtration Capacity (microns) 0-0.25, 0.25-0.5, 0.5-1, 1-2, 2-3
    Flow Capacity Range 0-500 cfm, 500-1000 cfm, 1000-1500 cfm, 1500-2000 cfm, >2000 cfm
    Frame Material MS, G.I., Aluminium, Wooden, Stainless Steel
    HEPA Filter Type Type A, Type B, Type C, Type D, Type E



    We put forward a broad range of High Efficiency Particulate Air Filter. It is ideally suitable for protection against harmful particles emitted from radioactive substances. Our offered filter is manufactured in adherence with the set industry standards using advanced technology and optimum quality raw material. In tune with international quality standard, we provide the entire range in various sizes and specifications as per the requirement of our clients. Our quality controllers perform a series of test on various parameters, in order to ensure the quality of this filter. Apart from this, clients can avail the entire range from us at industry leading rates.

    Features:

    • Easy to clean
    • High efficiency
    • Compact size



    Technical Specifications :

    • Flange Type & Box Type
    • Sizes Available: 610 mm x 610 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm
    • Customized Sizes Are Available On Request
    • Filtration Rating: 0. 3 Micron & More
    • Frame Material: SS 304 / GI (Galvanized Steel) / Aluminum.
    • Filtration Efficiency: 90- 99. 9 %
    • Filter Media: Glass Fiber Media / Spun Bonded Polyester Media.
    • BS EN 779 CLASS – H10, H11, H12, H13, H14 upto U17
    • Filter Efficiency – H10 – 95 % @ 0.3 micron
    • H11 – 99.9 % @ 0.3 micron
    • H12 – 99.97% @ 0.3 micron
    • H13 – 99.99% @ 0.3 micron
    • H14 – 99.999% @ 0.3 micron
    • Eurovent Class – EU 10, EU 11, EU 12, EU 13, EU 14 upto U17



    Applications:

    • Clean rooms for micro component electronic manufacture & assembly.
    • Pharmaceutical processing.
    • Aerospace engineeing.
    • Genetic & biological researh.
    • Biohazard atmosphere.
    • Laminar flow workstations.
    • Bio safe hood { biological safety cabinets}.
    • Hospital operating theaters & intensive care unit.
    • Atomic research.
    • Pre filter stage to ulpa systems.



    Performance :

    These filters have an efficiency of 99. 97% down to 0. 3 micron of dop aerosol.



    Nominal sizes
    mm
    Rated flow
    cmh
    Initial resistance
    mm wg
    610 x 610 x 150 850 25. 00
    610 x 610 x 293 1700 25. 00
    915 x 610 x 150 1250 25. 00
    1220 x 610 x 150 1700 25. 00



    Other Information



    • Pay Mode Terms: T/T (Bank Transfer)

    Specifications:

    • Efficiency: >99.99%
    • Maximum Width: 730mm
    • Medium Material: Fiberglass
  • Square HEPA Filters

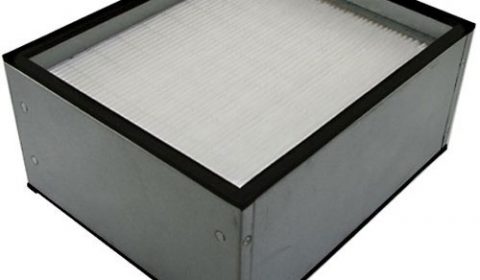

    Square HEPA Filters

    Product Details:

    Filtration Capacity (microns) 0-0.25, 0.25-0.5, 0.5-1, 1-2, 2-3
    Flow Capacity Range 0-500 cfm, 500-1000 cfm, 1000-1500 cfm, 1500-2000 cfm, >2000 cfm
    Frame Material MS, G.I., Aluminium, Wooden, Stainless Steel
    HEPA Filter Type Type A, Type B, Type C, Type D, Type E

    We put forward a broad range of HEPA Filter It is ideally suitable for protection against harmful particles emitted from radioactive substances. Our offered filter is manufactured in adherence with the set industry standards using advanced technology and optimum quality raw material. In tune with international quality standard, we provide the entire range in various sizes and specifications as per the requirement of our clients. Our quality controllers perform a series of test on various parameters, in order to ensure the quality of this filter. Apart from this, clients can avail the entire range from us at industry leading rates.

    Features:

    • Easy to clean
    • High efficiency
    • Compact size Technical

    Specifications:

    • Flange Type & Box Type
    • Sizes Available: 610 mm x 610 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm, 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm
    • Customized Sizes Are Available On Request
    • Filtration Rating: 0. 3 Micron & More
    • Frame Material: SS 304 / GI (Galvanized Steel) / Aluminum.
    • Filtration Efficiency: 90- 99. 9 %
    • Filter Media: Glass Fiber Media / Spun Bonded Polyester Media.
    • H14 – 99.999% @ 0.3 micron Specifications: No.Sizes in Inches Flow (cfm) 1. 12 x 12 x 6 90 2. 24 x 18 x 12 750 3. 24 x 36 x 6 750 4. 24 x 24 x 6 500 5. 24 x 24 x 12 1000 6. 24 x 48 x 6 1000

    Specifications:

    • Shape: Square
    • Medium Material: Fiberglass
    • Dimension: Customized

  • HEPA Filter

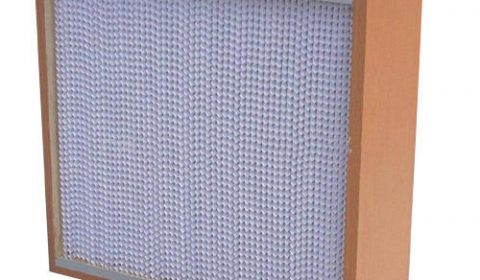

    HEPA Filter

    Product Details:

    Filtration Capacity (microns) 0-0.25, 0.25-0.5, 0.5-1, 1-2, 2-3
    Flow Capacity Range 0-500 cfm, 500-1000 cfm, 1000-1500 cfm, 1500-2000 cfm, >2000 cfm
    Frame Material MS, G.I., Aluminium, Wooden, Stainless Steel
    HEPA Filter Type Type A, Type B, Type C, Type D, Type E

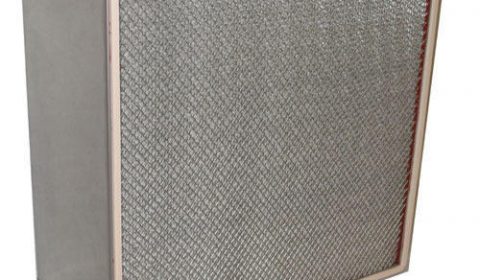

    Industrial HEPA Filters
    We manufacture and supply a wide range of Industrial HEPA Filters which has high filtration efficiency. These are manufactured by hemmed edges of aluminum separators in order to provide rigidity uniform air flow. We do quality analysis and testing of these Industrial HEPA Filters before we handover this to our valuable clients. We have specialized team of experts who do quality checking under certain parameters that meets international standards.Salient features are as follows:

    • Aluminum, S.S and G.I is used to make the body of HEPA filter
    • Used in biomedical purpose, vacuum cleaners, nuclear industry, aerospace, nuclear power, pharmaceutical processing, health care, hospitals, nuclear fuels, and electronic micro circuitry (computer chips).

    Specifications:

    • Purifying Technology: HEPA
    • Medium Material: Fiberglass
    • Dimension: Customized

    Additional Information:

    • Item Code: 9871014210
    • Pay Mode Terms: T/T (Bank Transfer),D/P,D/A
  • HEPA Filter

    HEPA Filter

    Product Details:

    Filtration Capacity (microns) 0-0.25, 0.5-1, 1-2, 2-3
    Flow Capacity Range 0-500 cfm, 500-1000 cfm, 1000-1500 cfm, 1500-2000 cfm, >2000 cfm
    Frame Material MS, G.I., Aluminium, Stainless Steel

    Specifications:

    • Clapboard: Without Clapboard
    • Medium Material: Synthetic Fiber
    • Maximum Width: 710mm
  • Three Riveted Blowers

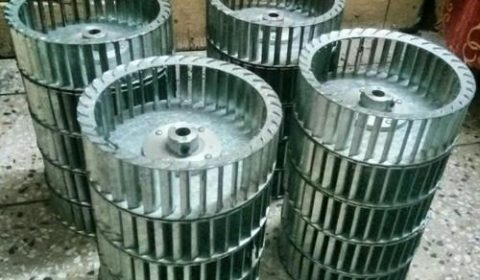

    Three Riveted Blowers

    Product Details:

    Blower Type Roots Blower, Inflatable Blower, Centrifugal Blower, Turbo Blower
    Body Material Cast Iron, Steel
    Condition New
    Power Source Pneumatic, Manual Blower, Electric Blower
    Pressure Medium Pressure, High Pressure, Low Pressure

    Three Riveted Blowers We are providing our clients with an impeccable range of G.I Double Inlet Impellers. Manufactured using aluminum, these impellers are provided with a ring welded on their blade tip. These offered impellers are precisely designed through an effective production methodology in line with the clients’ requirements and industry laid parameters. Features: Longer service life High compressive strength Resistance against corrosion Smooth-finish Dimensional accuracy. This can be used under 2800 RPM

  • Spray Booth Paper Filter

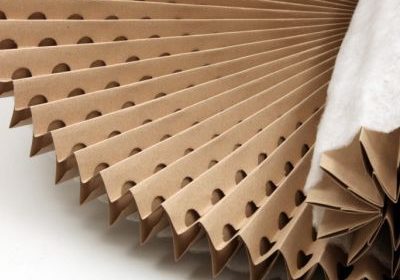

    Spray Booth Paper Filter

    Product Details:

    Type Qualitative,
    Material Cotton pulp, Wood pulp, Glass Fiber



    Spray Booth Paper Filter
    Spray Booth Paper Filter
     is a new environmental product, also called organ type painting filter for dry type painting booths, it is made of environmental paper, special spire air flow design, is able to absorb the tiny particles efficiently, filtration efficiency is almost 95%, it can hold at least 15 kg of oil dust/sqm. It is easy to change and the painting process is DP ENGINEERS

    Products details:



    • Color brown
    • Spread thickness 50 mm
  • Paper Paint Booth Filter

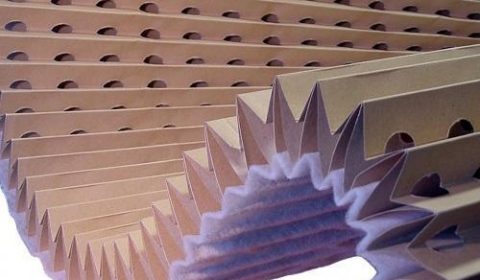

    Paper Paint Booth Filter

    Product Details:

    Capacity 10kg
    Material environmental paper



    Paper Paint Booth Filter

    We Manufacture and Supply Paper Paint Booth Filter is a new DP ENGINEERS product, also called organ type painting filter for dry type painting booths, it is made of environmental paper, special spire air flow design, is able to absorb the tiny particles efficiently, filtration efficiency is almost 89%, it can hold at least 10kg of oil dust/sqm. It is easy to change and the painting process is DP ENGINEERS in Delhi

    Advantages



    • Easy to Install and Remove.
    • Blower power consumption is reduced.
    • Capital cost of the booth is less.
    • Maintenance cost is less.
