  • Dry Viscous Metallic Air Filters

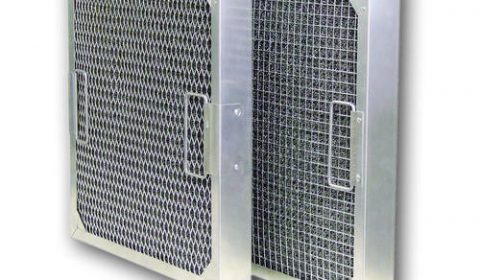

    Dry Viscous Metallic Air Filters

    Product Details:

    Construction Cartridge Filter, Panel Filter, Box Filter, Bag Filter, Wire Mesh
    Filtration Grade Hepa Filter, Pre Filter, Ulpa Filter, Medium Filter
    Medium Material Paper, Active Carbon, Microfiber, Synthetic Fiber, Ceramic



    Metallic Viscous Filters are pre filters that are designed for general ventilation and air conditioning system applications as well as for electric motors and plenum air for working areas. These are an economical and a very durable option over other pre filter counterparts.

    Construction:

    •  The element is constructed using 5 layer of G.I. wire-mesh inter-spaced with 2 crumpled layers and 3 flat layers. The media is supported with expanded metal from both sides as reinforcement and housed usually in 2” deep metal frame (Custom build sizes are also available on order).

    Specifications:

    • Frame: Aluminum/Galvanized steel/Stainless steel
    • Protective net: Aluminum zinc grid/Galvanized iron wire/Stainless steel
    • Max. Temperature: 400ºC
    • Max. Humidity: 100%

    Specifications:

    • Frame Material: Mild Steel
    • Size: Customized
    • Mesh Material: MS
  • Pleated Metal Mesh Filter

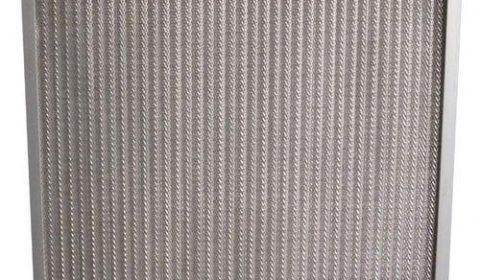

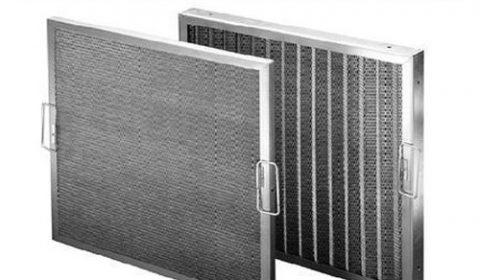

    Pleated Metal Mesh Filter

    Product Details:

    Color Grey
    Mesh Material SS



    Pleated Metal Mesh Filter are pre filters that are designed for general ventilation and air conditioning system applications as well as for electric motors and plenum air for working areas. These are an economical and a very durable option over other pre filter counterparts.

    Construction:



    • The element is constructed using 5 layer of GI Wire mesh inter-spaced with 2 crimpled layers and 3 flat layers. The media is supported with expanded metal from both sides as reinforcement and housed usually in deep metal frame (custom build sizes are also available on order).



    Specification Efficiency:

    • Standard Pleated Metal Mesh Filter have an efficiency of 65% for 20 micron size particles. Metallic filters with an efficiency rating of 65-85% to capture 25 micron to 50 micron size particles are also available on order. Efficiency can be increased to 85% if the filters are oil wetted.



    Technical Specifications:



    • Frame Type: Available in Flange or Box Type GI,AL.,SS
    • Filter media: GI/SS/Aluminum expanded mesh
    • Face guard: Filter is protected with expanded mesh on both sides
    • Pressure drop: Initial pressure drop ~1mm wg & recommended final pressure drop is 5-10mm wg



    Operating conditions:

    • Filter can withstand temperature >80âºc and relative humidity of 70%. Recommended air velocity is 2m/sec to 2. 5m/sec. Filter is washable and can be washed using water or back air pressure and reused.



    Application:

    • Pleated Metal Mesh Filter are most suited for:
    • Air Handling Units (ahus),
    • Automatic Drain Holes,
    • Paint Shops,
    • Textile Mills,
    • Cement Factories,
    • Miscellaneous Industrial Ventilation.

    Specifications:

    • Frame Material: SS
    • Mesh Material: SS
    • Color: Grey
  • Lab Metallic Viscous Filters

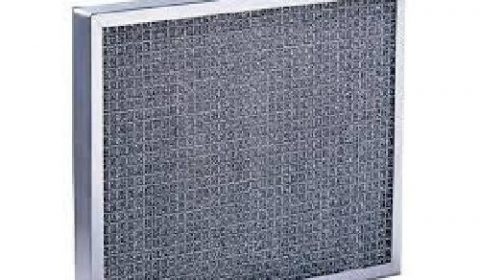

    Lab Metallic Viscous Filters

    Product Details:

    Construction Cartridge Filter, Panel Filter, Box Filter, Bag Filter, Wire Mesh
    Filtration Grade Hepa Filter, Pre Filter, Ulpa Filter, Medium Filter
    Medium Material Paper, Active Carbon, Microfiber, Synthetic Fiber

    Metallic Viscous Filters are pre filters that are designed for general ventilation and air conditioning system applications as well as for electric motors and plenum air for working areas. These are an economical and a very durable option over other pre filter counterparts.

    Construction:

    • The element is constructed using 5 layer of G.I. wire-mesh inter-spaced with 2 crumpled layers and 3 flat layers. The media is supported with expanded metal from both sides as reinforcement and housed usually in 2” deep metal frame (Custom build sizes are also available on order). Specifications:
    • Frame: Aluminum/Galvanized steel/Stainless steel
    • Protective net: Aluminum zinc grid/Galvanized iron wire/Stainless steel
    • Max. Temperature: 400ºC
    • Max. Humidity: 100% Specifications:
    • Medium Material: Stainless Steel Mesh
    • Size: Customized
    • Frame Material: SS

  • Wire Mesh Filter

    Wire Mesh Filter

    Product Details:

    Minimum Order Quantity 22083434 Number
    Construction Cartridge Filter, Panel Filter, Box Filter, Bag Filter, Wire Mesh
    Filtration Grade Hepa Filter, Pre Filter, Ulpa Filter, Medium Filter
    Medium Material Paper, Active Carbon, Microfiber, Synthetic Fiber, Ceramic

    FCU Wire Mesh Filter We are one of the most well-distinguished companies in the market that is into offering FCU Wire Mesh Filter. Specifications: • Material Used: Aluminium anodized • Flow: Standard Flow • Size: 9mm-12mm • Applications: Food Processing Industry, Industrial Ventilation Systems Features: • High Dwell Time • Low Pressure Drop • Long Life • High Dust Holding Capacity Specifications: • Frame Material: SS • Mesh Material: Stainless Steel • Color: Grey

  • Mist Eliminator Filter

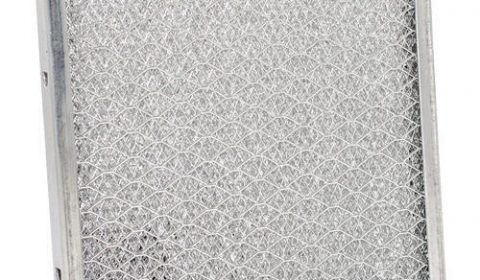

    Mist Eliminator Filter

    Product Details:

    Filtration grade Hepa filter,medium filter,pre filter,ulpa filter
    Filter Type Multigrade Sand Filter, Activated Carbon Filters, Hydraulic Filter, Cartridge Filter, Nutsche Filters
    Filter Medium Material Activated Carbon, Metal, Fiberglass, Microfiber, Paper
    Flow Rate (cubic meters/hr) 0-500, 500-1000, 1000-2000, 2000-3000, 3000-4000, >4000



    Application:

    • Kitchen extract systems, Pre filtration within air conditioning systems.

    Specifications:

    • Type: Grease elimination or coarse dust removal.
    • Frame: Standard galvanized mild steel, stainless steel or aluminum
    • Media: Knitted or multilayer pad.
    • Arrestance efficiency: 65% – 80%.
    • Eurovent 4/5 efficiency: EU2, EU3.
    • Temperature: 100°C maximum in continuous service.
    • Humidity: 100% RH.
    • Accessories: Handles and drain holes.

    Specifications:

    • Frame Material: SS
    • Size: Customized
    • Color: Silver
    • Brand DP
  • Winters Digital Pressure Gauge DPG209

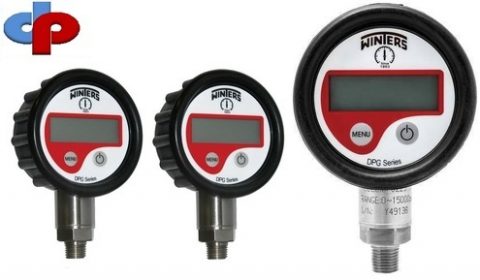

    Winters Digital Pressure Gauge DPG209

    Winters Digital Pressure Gauge DPG209

    -15/0/300 PSI DPG SERIES, 2.5″ DIAL, 30″/0/300 PSI, ABS CASE, RUBBER BOOT, 1/4″ NPT LM DPG209

  • Winters Digital Pressure Gauge DPG208

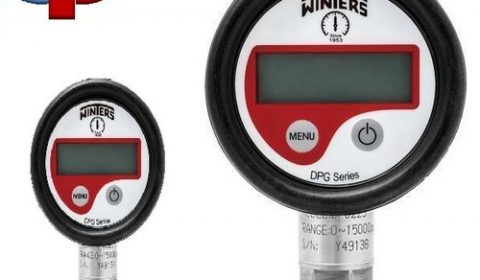

    Winters Digital Pressure Gauge DPG208

    Winters Digital Pressure Gauge DPG208

    DPG SERIES, 2.5″ DIAL, 30″/0/200 PSI, ABS CASE, RUBBER BOOT, 1/4″ NPT LM

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Winters Digital Pressure Gauge DPG207

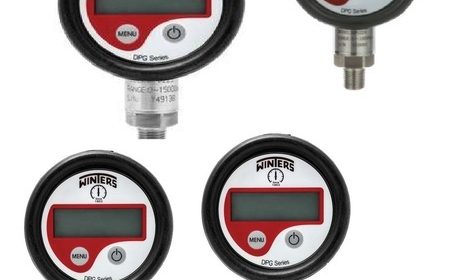

    Winters Digital Pressure Gauge DPG207

    Winters Digital Pressure Gauge DPG207

    DPG SERIES, 2.5″ DIAL, 30″/0/150 PSI, ABS CASE, RUBBER BOOT, 1/4″ NPT LM

  • Winters Digital Pressure Gauge DPG206

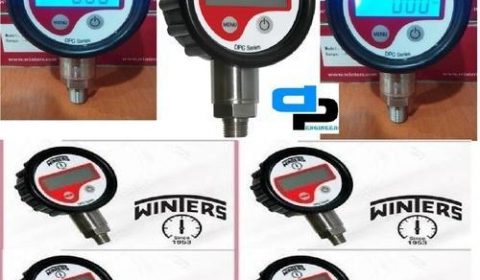

    Winters Digital Pressure Gauge DPG206

    Winters Digital Pressure Gauge DPG206

    WINTERS DPG206 – 30″/0/100 PSI GAUGE

    APPLICATIONS:
    Ideal for commercial and industrial applications in both test measurement and general purpose installations
    DESCRIPTION & FEATURES:

    Simple 2 button operation
    Reset to zero feature
    Backlight turns on when on/off button is pressed
    Option for display to remain continuously on
    Continuous Peak pressure indication option
    316L welded diaphragm seal
    Rubber boot is standard
    ASME B40.100 compliant
    RoHS compliant
    +/- 1% accuracy (+-/ 0.5% optional for gauges up to 5,000 psi)
    1 year warranty

  • Winters Digital Pressure Gauge DPG205

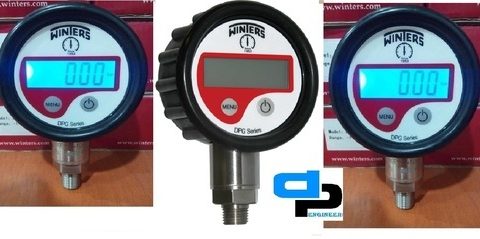

    Winters Digital Pressure Gauge DPG205

    Product Details:

    Brand Winters
    Condition New
    Connection New
    Model No. DPG205

    Winters Digital Pressure Gauge DPG205

    Winters Instruments DPG205 DPG SERIES, 2.5″ DIAL, 30″/0/60 PSI, ABS CASE, RUBBER BOOT, 1/4″ NPT LM
    Technical Specs
    ItemDigital Pressure Gauge
    Case ColorBlack
    Includes(2) AAA Batteries
    Display4 Digits
    Resolution1 Digit
    Range15/0/60 PSI
    Display UnitsPSI, mmH2O, mmHG, Mbar, kPa
    SeriesDPG
    Agency ComplianceASME B40.100
    Socket Material304 Stainless Steel
    Case MaterialABS with Silicone Rubber Boot
    Calibration CertificateAvailable
    FeaturesSimple 2 button operation, Reset to zero feature.
    Manufacturers Warranty Length1 yr.
    Powered By2 x AAA battery (1.5 V)
    Gauge Nominal Dial Size2-1/2″
    Basic Gauge Wetted PartsStainless Steel
    Gauge Operating Temp. Range14 Degrees F – 122 Degrees F
    Gauge Connection LocationBottom
    Gauge Connection Size1/4″
    Basic Gauge Case MaterialPlastic
    Digital Pressure and Vacuum Gauge TypeDigital Pressure Gauge
    Digital Gauge Accuracy+/-1.00%
    Number of Display Digits4
    Digital Gauge Display UnitsPSI, mbar, kPa, mmHg, mmH2O

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
