Category: Magnehelic Gauge Wholesale Suppliers India

  • Magnehelic Differential Pressure Gauge

    Magnehelic Differential Pressure Gauge

    Product Details:

    Measuring Range d.p.engineers



    Magnehelic Differential Pressure Gauge

    We offer magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas. In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover. These have exterior finish with grey color to withstand 168 hour salt spray corrosion test.

    Specifications :

    • Accuracy: ±2% of full scale (±3% on – 0, -100 Pa, -125 Pa, 10MM and ±4% on – 00, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C).
    • Pressure Limits: -20 Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option:
    • HP option: 35 psig (2.41 bar), 80 psig (5.52 bar).
    • Over pressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gauges only.
    • Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
    • Size: 4 (101.6 mm) Diameter dial face.
    • Mounting Orientation: Diaphragm in vertical position, Consult factory for
    • Process Connections: 1/8 female NPT duplicate high and low pressure taps one pair side and one pair back.
    • Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g).
    • Other position orientations.
    Specifications:

    • Accuracy: 1.4%
    • Case Material: Aluminium
    • Dial Plate: Aluminium

  • MS Flange Type Magnehelic Gauge

    MS Flange Type Magnehelic Gauge

    Product Details:

    Brand d.p.engineers

    We are one of the topmost manufacturer, exporter and supplier of a superior quality range of MS Box Flesh type Magnehelic Gauge. These instruments are designed and made utilizing the finest grade raw material by following high definition engineering principles. Furthermore, these are widely appreciated for some of the salient features like accurate dimension, durability, superior performance and corrosion resistance. We provide these to our clients in both, standard and customized options according to the specific demands of customers.

    Specifications:

    • Type: Limit Gauge
    • Measurement Object: Depth
    • Material: PS for Cup, PP for Ring

    Specifications:

    • Die Cast Aluminum Housing
    • Protection: IP65
    • Accuracy: 1.9%

  • Low Pressure Differential Gauge

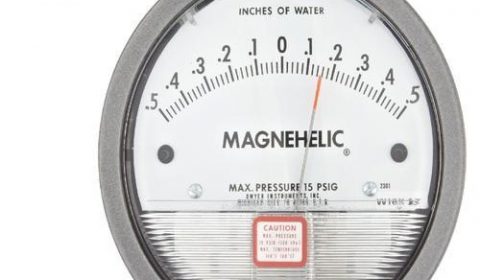

    Low Pressure Differential Gauge

    Product Details:

    Brand Dp Engineers

    Low Pressure Differential Gauge: Low Pressure Differential Gauge for pharma companies.

    Specifications:

    • Pressure: 01.5kPa
    • Measuring Medium: Steam
    • Color: Grey

  • Industrial Magnehelic Gauges

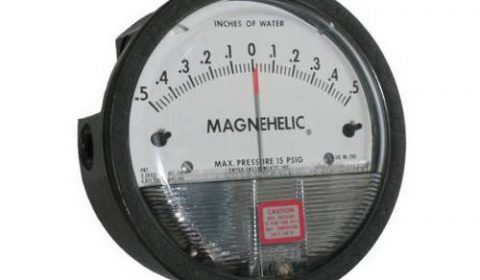

    Industrial Magnehelic Gauges

    Product Details:

    Brand dp engineers

    Specifications:

    • Measuring Medium: Gas
    • Diameter: 90mm
    • Color: Black

  • GI Box Magnehelic Gauge

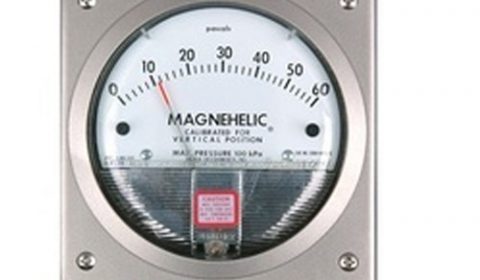

    GI Box Magnehelic Gauge

    Product Details:

    Minimum Order Quantity 22083434 Number
    Brand d.p.engineers

    We have been continuously indulged in supplying a high quality array of GI Magnehelic Gauge Box to our highly valued consumers. Our products are highly acclaimed for their performance and quality. These are widely execute in numerous sectors. These products are gettable at leading market prices.

    Specifications:

    • Indicating Pressure Reference: General Pressure Gauge
    • Installation Structure: Convex
    • Connection Type: Axial

    Specifications:

    • Die Cast Aluminum Housing
    • Color: Silver
    • Protection: IP65

  • Differential Pressure Transmitter

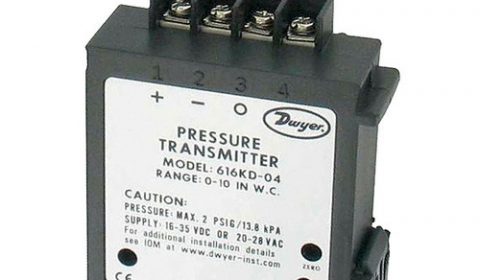

    Differential Pressure Transmitter

    Specifications:
    •Accuracy: ±2% FS
    •Stability: ±1% FS/year
    •Temperature Limits: 32 to 122°F (0 to 50°C)
    •Pressure Limits: 2 psi (13.8 kPa)

  • Differential Pressure Gauge

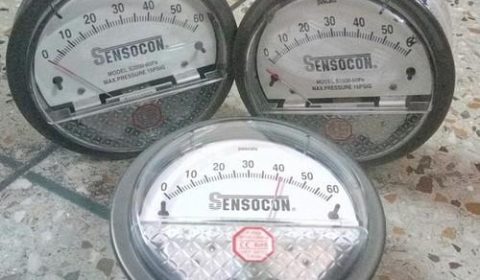

    Differential Pressure Gauge

    Product Details:

    Brand SENSOCON
    Model www.dpengineerindia.com

    We offer magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas. In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover. These have exterior finish with grey color to withstand 168 hour salt spray corrosion test.

    Specifications :

    • Accuracy: ±2% of full scale (±3% on – 0, -100 Pa, -125 Pa, 10MM and ±4% on – 00, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C).
    • Pressure Limits: -20 Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option:
    • HP option: 35 psig (2.41 bar), 80 psig (5.52 bar).
    • Over pressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gauges only.
    • Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
    • Size: 4 (101.6 mm) Diameter dial face.
    • Mounting Orientation: Diaphragm in vertical position, Consult factory for
    • Process Connections: 1/8 female NPT duplicate high and low pressure taps one pair side and one pair back.
    • Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g).
    • Other position orientation
    Specifications:

    • Accuracy: 0.5%
    • Diameter: 100mm
    • Protection: IP65

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Baumer Make Pressure Gauge

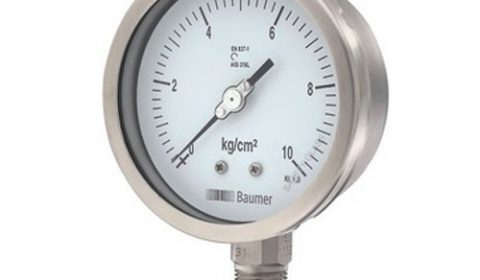

    Baumer Make Pressure Gauge

    Product Details:

    Brand D.P.ENGINEERS

    Baumer Make Pressure Gauges

    Specifications:

    • Operating Temperature: -20°C to +50°C
    • Color: Silver
    • Protection: IP65

    Additional Information:

    • Pay Mode Terms: T/T (Bank Transfer),D/P,D/A
  • Mini Photohelic Differential Pressure Gauge

    Mini Photohelic Differential Pressure Gauge

    Mini Photohelic Differential Pressure Gauge Mini-Photohelic differential pressure switch/gauge combines the time proven Minihelic II differential pressure gauge with two SPDT switching set points The Mini-Photohelic switch/gauge is designed to measure and control positive, negative, or differential pressures consisting of non-combustible and non-corrosive gases Gauge reading is independent of switch operation Switching status is visible by LED indicators located on the front and rear of the gauge Setpoints are adjusted with push buttons on back of unit This extremely compact switch/gauge is ideal for fume hoods, dust collection, pneumatic conveying and clean room applications Gauge specifications • Service: air and non-combustible, compatible gases • Wetted materials: consult factory • Accuracy: ±5% of FS @ 70°F (21.1°C), gauge face mounted in vertical position • Pressure limits: 30 psig (2.067 bar) • Temperature limits: 20 to 120°F (-6.7 to 49°C) • Process connections: barbed for 3/16″ I.D. tubing, 1/8″ male NPT optional • Size: 4-1/8″ (104.78mm) depth x 3-1/16″ (77.79mm) diameter • Weight: 23oz (652g) • Switch specifications: • Switch type: (2) SPDT relays • Electrical rating: 5A @ 120/240V AC resistive, 5A @ 30V DC • Electrical connections: screw type terminal block, accepts 22-12 AWG wire • Power requirements: 24V DC/24V AC 50Hz/60Hz 4W • Mounting orientation: gauge face in vertical position • Setpoint adjustment: pushbuttons • Standard accessories: (2) mounting screws, (1) .050″ hex Allen wrench • Agency approvals: CE, cUL, UL

  • Magnehelic And Minihelic Gauges

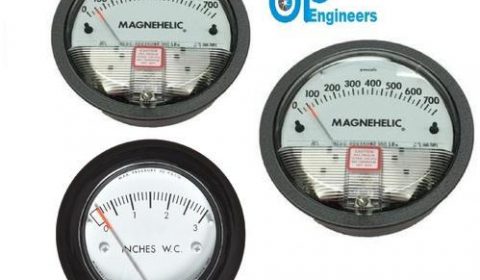

    Magnehelic And Minihelic Gauges

    Product Details:

    Brand Dwyer Magnehelic Gauge Wholesale Suppliers in D.P.ENGINEERS India

    Magnehelic and minihelic gauges Our firm is well identified as a leader in providing a supreme quality assortment of Magnehelic And Minihelic Gauges. Supreme quality raw materials and innovative technologies are utilized in fabricating process of these Magnehelic And Minihelic Gauges. Moreover, these gauges are accessible at very competitive rates.

    Additional Information:

    • Pay Mode Terms: D/A,D/P,T/T (Bank Transfer)
