Category: DPG 200 Digital Pressure Gaugue Dwyer USA Wholesle

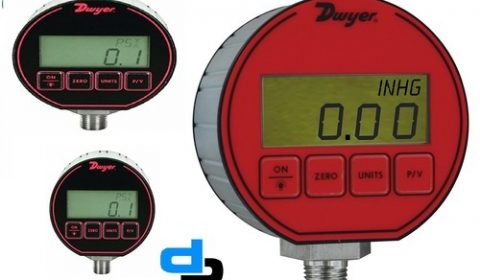

  • DWYER USA DPG-202 Digital Pressure Gage

    DWYER USA DPG-202 Digital Pressure Gage

    DWYER USA DPG-202 Digital Pressure Gage

    Series DPG-200 Digital Pressure Gage, 15 psig

    3-in-1: Gage, Transmitter & Switch

    The Series DPG-200 Digital Pressure Gage has a precise ±0.25% full scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. The DPG-200 is packaged in a durable extruded aluminum case designed to meet NEMA 4X (IP66). The unit is powered by 12-24 VDC/VAC and contains two alarm set points along with a 4-20 mA process output. A four-button keypad allows easy access to features. These features include backlight, peak and valley, auto zero and conversion of the pressure units.

    DPG-202

    Digital pressure gage, selectable engineering units: 15.00 psig, 1.055 kg/cm², 1.034 bar, 30.54″ Hg, 34.61 ft w.c., 33.73 ft seawater @ 4°C, 103.4 kPa, 240 oz/in², 415.2″ w.c., 1034 mbar, 1055 cm w.c., 775.7 mm Hg.

    Product Applications

    Level Control
    Pump Control
    Process Control
    Compressor Control

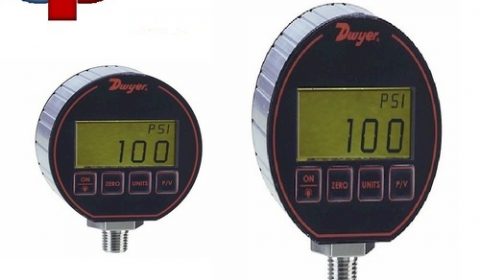

  • DWYER USA DPG-200 Digital Pressure Gage

    DWYER USA DPG-200 Digital Pressure Gage

    DWYER USA DPG-200 Digital Pressure Gage
    Series DPG-200 Digital Pressure Gage, 14.70-0
    The SERIES DPG-200 Digital Pressure Gage has a precise ±0.25% full scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. The DPG-200 is packaged in a durable extruded aluminum case designed to meet NEMA 4X (IP66). The unit is powered by 12-24 VDC/VAC and contains two alarm set points along with a 4-20 mA process output. A four-button keypad allows easy access to features. These features include backlight, peak and valley, auto zero and conversion of the pressure units.
    Product Applications
    Level ControlPump ControlProcess ControlCompressor Control
    DPG-200
    Digital pressure gage, selectable engineering units: -14.70-0 psig, -1.033 kg/cm², -1.013 bar, -29.93″ Hg, -33.94 ft w.c., -33.06 ft seawater @ 4°C, -101.4 kPa, -235.2 oz/in², -407.3″ w.c., -1013 mbar, -1034 cm w.c., -760.7 mm Hg.
