  • Dwyer ADPS-04-2-N Adjustable Differential Pressure Switch

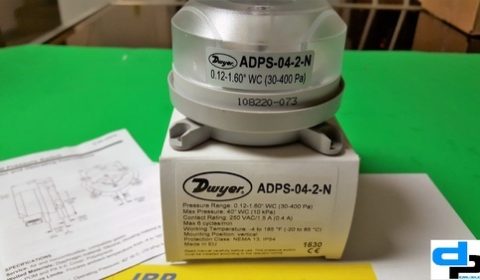

    Dwyer ADPS-04-2-N Adjustable Differential Pressure Switch

    Product Details:

    Brand Siemens, Baumer
    Media Type Gas, Liquid

    Dwyer ADPS-04-2-N Adjustable Differential Pressure Switch
    Adjustable differential pressure switch, set point range 0.12 to 1.60″ w.c., M20 connection.Dwyer ADPS Series Offers
    Features
    Available with settings from 0.08″ w.c. (20 Pa) up to 16″ w.c. (4000 Pa)
    The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases
    The compact size, adjustment knob and low cost make the ADPS the perfect choice for HVAC applications
    Specifications
    Service: Air and non-combustible, compatible gases
    Temperature Limits: Process and ambient temperature from -4 to 185°F (-20 to 85°C)
    Pressure Limits: Max. Operating Pressure: 40″ w.c. (10 kPa) for all pressure ranges
    Switch Type: Single-pole double-throw (SPDT)
    Electrical Rating: Max., 1.5A/250 VAC, max. switching rate: 6 cycles/min.; Gold Contact Option: 0.4 A/ 250 VAC
    Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection
    Process Connections: 5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing
    Enclosure Rating: NEMA 13, IP54
    Mounting Orientation: Vertically, with pressure connections pointing downwards
    Mechanical Working Life: Over 106 switching operations
    Weight: 5.6 oz (160 g)
    Applications
    Monitoring air filters and ventilators
    Monitoring industrial cooling-air circuits
    Overheating protection for fan heaters
    Monitoring flows in ventilation ducts
    Controlling air and fire-protection dampers
    Frost protection for heat exchanges

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch

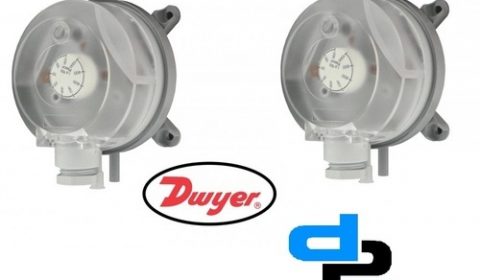

    Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch

    Product Details:

    Brand Honeywell, Schneider, Siemens, Baumer
    Media Type Gas, Liquid

    Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch
    Designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and Pascals allows changes to the switching pressure to be made without a pressure gage.
    Adjustable differential pressure switch, set point range 0.20 to 2.00″ w.c., M20 connection.DPS Series Offers
    Features
    Available with settings from 0.08″ w.c. (20 Pa) up to 16″ w.c. (4000 Pa)
    The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases
    The compact size, adjustment knob and low cost make the ADPS the perfect choice for HVAC applications
    Specifications
    Service: Air and non-combustible, compatible gases
    Temperature Limits: Process and ambient temperature from -4 to 185°F (-20 to 85°C)
    Pressure Limits: Max. Operating Pressure: 40″ w.c. (10 kPa) for all pressure ranges
    Switch Type: Single-pole double-throw (SPDT)
    Electrical Rating: Max., 1.5A/250 VAC, max. switching rate: 6 cycles/min.; Gold Contact Option: 0.4 A/ 250 VAC
    Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2″ NPT connection
    Process Connections: 5/16″ (7.94 mm) outside diameter tubing, 1/4″ (6.0 mm) inside diameter tubing
    Enclosure Rating: NEMA 13, IP54
    Mounting Orientation: Vertically, with pressure connections pointing downwards
    Mechanical Working Life: Over 106 switching operations
    Weight: 5.6 oz (160 g)
    Applications
    Monitoring air filters and ventilators
    Monitoring industrial cooling-air circuits
    Overheating protection for fan heaters
    Monitoring flows in ventilation ducts
    Controlling air and fire-protection dampers
    Frost protection for heat exchanges

    Additional Information:

    • Pay Mode Terms: L/C (Letter of Credit)
