Category: Humidification & Ventilation Equipment – Cellulose

  • Air Washer

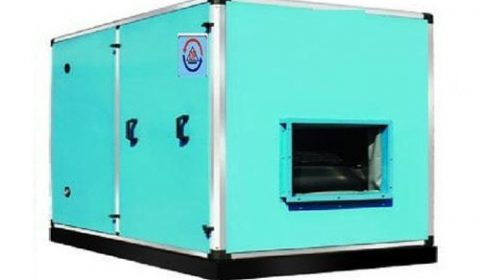

    Air Washer

    Product Details:

    Capacity >40000 cfm
    Cooling Area 20-40 square feet, >60 square feet
    Motor Brand Siemens, Crompton Greaves
    Motor Power 5 HP



    Manufactures High Quality Single Skin Air Washers as per customer requirement under the brand name ” ETIP”

    Features of Single Skin Air Washer:

    • Capacity Available : 2000 to 40000 CFM with single Blower & 4000 to 80000 CFM with Single & multiple blowers.
    • Base Frame : The total assembly is mounted on a horizontal member of channels.
    • Fan Section : Constructed in GI/SS Sheet with Inspection Doors.
    • Wet Section : Constructed in GI/SS Sheet.
    • Water Tank: Constructed in GI with Frp coated/SS.
    • Blower : Dynamically Balanced Forward Curved, DIDW Type Make ETIP / Imported.
    • Cellulose Paper Pad : Imported
    • Electric Motor : Three Phase, TEFC squirrel cage induction motor of standard makes (Crompton, ABB and Kirloskar etc.).
    • Drive Pulley : V-Groove with/without Taper Lock hub.
    • V-Belts : Fenner make.
    • Pump : Monoblock make Crompton / Kirloskar.
    • Filter : HDPE/Aluminum/GI Mesh Filter, Micro Vee, Hepa as per requirement.
    • Pipe Fittings : PVC/GI piping with all Necessary fittings such as float valve, quick fill, overflow & drain ports.

    Specifications:

    • Cooling Capacity: 13-268kw
    • Operating Voltage: 380/400 VAC
    • Power supply: 380V/3PH/50Hz

    Features:

    • Capacity Available: 2000 to 40000 CFM with single Blower & 4000 to 80000 CFM with Single & multiple blowers
    • Motor Power:3 HP
    • Color: Green
  • Filter For Schwing Stetter BP 1800

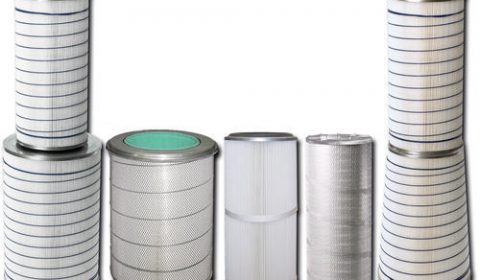

    Filter For Schwing Stetter BP 1800

    Product Details:

    Filter Medium Material Metal, Fiberglass, Microfiber, Paper
    Filter Type Multigrade Sand Filter, Activated Carbon Filters, Hydraulic Filter, Cartridge Filter, Nutsche Filters
    Length 5-10 inch, 10-15 inch, 15-20 inch, 20-25 inch, >25 inch
    Diameter 2-3 inch, 3-4 inch, >4 inch
    Usage Air Filter, Oil Filter, Steam Filter

    Filter For Schwing Stetter BP 1800 Filter for BP 1800, BP 2000 Equivelant to Schwing Stetter P No – F10155110 10155110
