  • Digital Differential Pressure Gauges

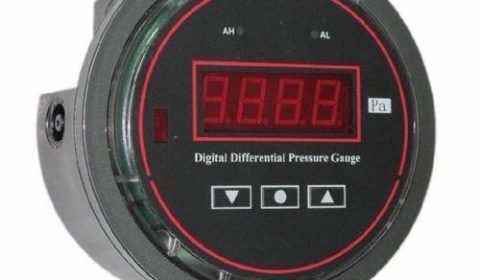

    Digital Differential Pressure Gauges

    The series A1 Digital Differential Pressure Gage is a patent pending microprocessor based digital pressure gauge for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges. The Series A1 differential pressure gauges utilize an extremely stable piezo resistive sensing technology to give a standard full scale accuracy of 1%. For applications requiring better accuracy, the A1 is also available with 0.5% accuracy. The A1 pressure gauge also has an optional 4-20 mA output for applications requiring an output signal. The A1 features a bright ½” LED display, which gives the gauge improved readability and precision. The A1 digital differential pressure gauges also feature 5 user selectable engineering units including in. w.c., mm w.c., cm w.c., kPa, and Pa. The Series A1 offers an improved look, and performance compare to mechanical gauges for a similar price.

    Maximum Pressure:

    • 4″ w.c. and less = 2 PSI; 5″ w.c. and above = 10 PSI
    • Media compatibility:
    • Air and compatible non combustible, non corrosive gasses
    • Accuracy*:
    • Axxx0-xx – 1.00%; Axxx1-xx – 0.50%; Axxx2-xx – 0.25%
    • Temperature Ranges: Compensated and Operating:
    • -10° to 140°F (-23° to 60°C)
    • Thermal Effect*:
    • /- 0.012% FS/°F
    • Output Signal:
    • 4-20 mA (option)
    • Loop Resistance:
    • 750 Ω Max (for internally sourced power); 1800 Ω Max
    • (for externally sourced power of 36 VDC)

    Specifications:

    • Universal 24-240 VAC or VDC
    • Housing Material:
    • Glass Filled Nylon
    • Enclosure Rating:
    • Designed to meet NEMA 4X face; with optional
    • cover the entire product is weatherproof

    Specifications:

    • Color: Black
    • Pressure Range: 0-100Mpa
    • Diameter:100mm
  • Wet Differential Pressure Transmitter

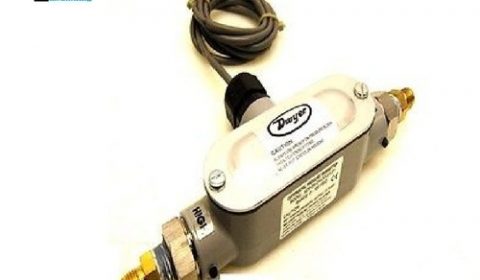

    Wet Differential Pressure Transmitter

    Product Details:

    Brand dwyer

    Wet Differential Pressure Transmitter
    Specifications:

    • Measuring Range: 20-200Pa to 200-4000Pa
    • Protection: IP54
    • Operating Temperature: -20°C to +60°C
  • Differential Pressure Gauge

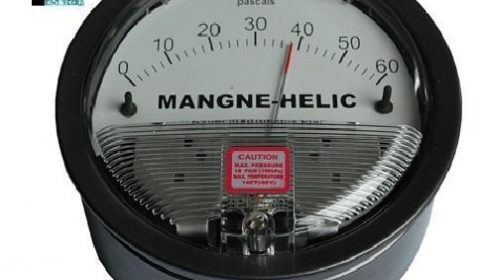

    Differential Pressure Gauge

    Product Details:

    Brand Dwyer
    Measuring Range(mm) 0-50 mm wc

    Differential Pressure Gauge
    The Magnehelic gauge is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid amplifier or fluidic systems. It also checks gas-air ratio controls and automatic valves, and monitors blood and respiratory pressures in medical care equipment.
    Select the Magnehelic gauge for high accuracy, guaranteed within 2% of full scale. Designed for air and non-corrosive gases, 81 models are available to suit any requirement. Using Dwyer’s simple, frictionless Magnehelic gauge movement, this range of products quickly indicates low air or non-corrosive gas pressures – positive, negative (vacuum) or differential. These gauges resist shock, vibration and over-pressures and contain no manometer fluid to evaporate, freeze or cause toxic or leveling problems. They are very budget friendly as well!
    Design features include a breakage resistant glass, easy-to-see red tipped pointer, near frictionless movement of internal mechanisms, a zero adjustment screw that can be accessed without removing the cover, resistance to overpressures, O-ring seal and die-cast iridite-dipped aluminium cases that have passed a 168 hour salt spray corrosion test.

    Features : Magnehelic Gauge

    • Bezel with flange for flush mounting in panel
    • Breakage resistant clear plastic face
    • Precision litho-printed scale
    • Shock-resistant jeweled bearings
    • Easy access to zero-adjustment screw
    • Motion dampening with high viscosity silicone fluid
    • Corrosion resistant die-cast aluminium case
  • Mounting Plate

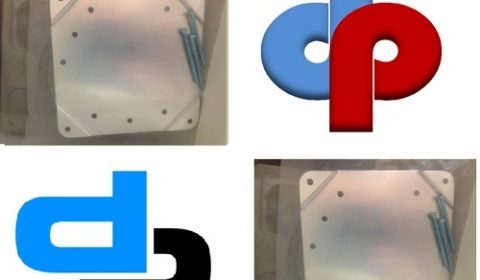

    Mounting Plate

    Product Details:

    Material Aluminium
    Size Various

    MOUNTING PLATE Aluminium / SS metal plate and screws to surface mount the S2000 differential pressure gauge
